The hinge is connected with the door leaf. Measure down 200mm and draw the positioning line, align the shorter side of the hinge with the line, and then align the longer side of the hinge with the reverse of the door leaf, then draw the hinge slot along the border And use a flat chisel to pick out the hinge groove. It should be remembered here that the hinge groove should be deep inside and shallow outside, and its depth should be consistent with the thickness of the hinge, which means that after we install the hinge, it should be flush with the groove. After the hinge slot is removed, put in the hinge and temporarily fix it with two screws.

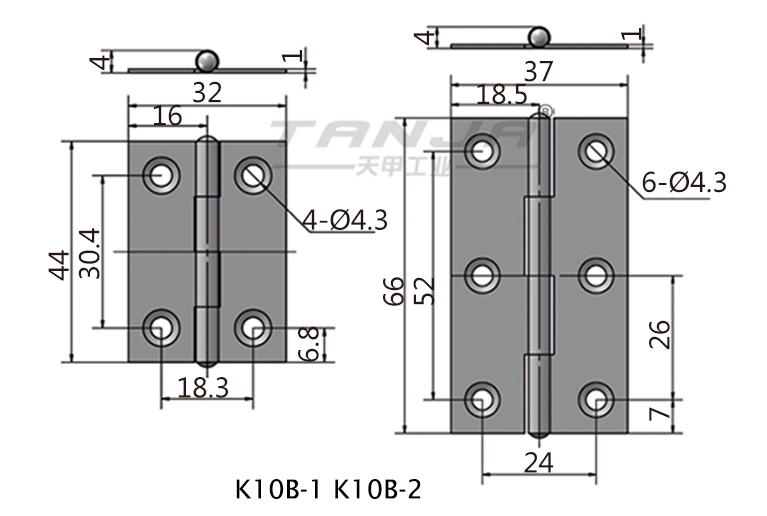

K10-light hinge

Using SUS201 material

Flat hinge, angle greater than 270 °

Uses: distribution cabinet, toolbox
