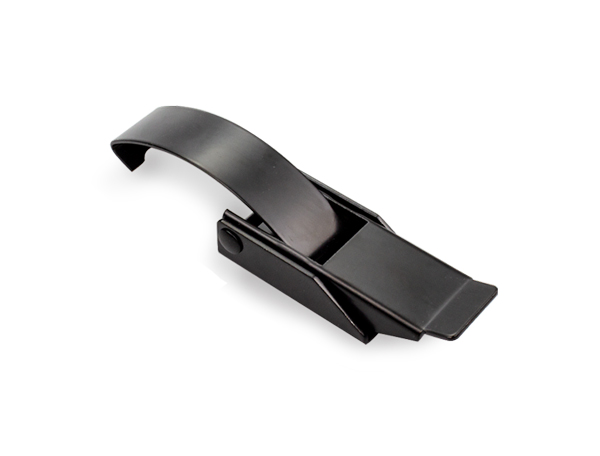

Flexible & Damping Toggle Latch

A41-4

Flexible & Damping Toggle Latch

Zinc plated/Electrophoretic paint

application:Small & medium-sized case cover,Mechanical equipment,Vehicles

catalogue CAD data

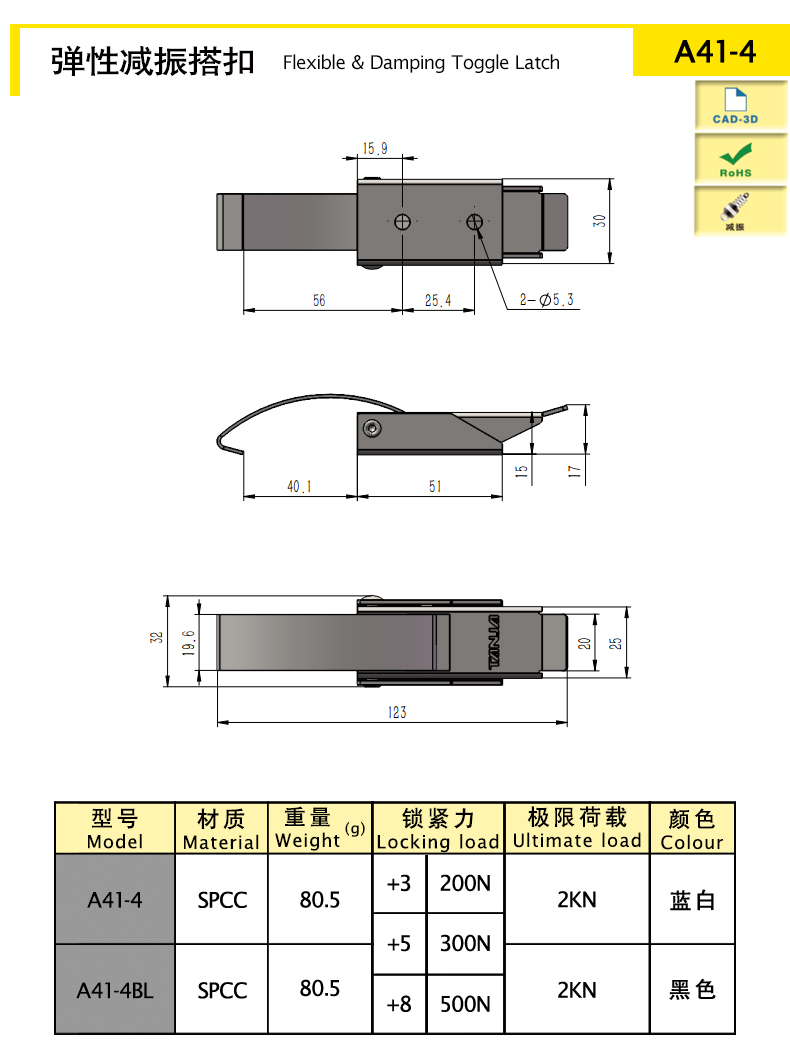

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A41-4 Damping 123 SPCC 80.5 200/300/500 2000
A41-4BL Damping 123 SPCC 80.5 200/300/500 2000
characteristic
 Spring -steel hook reduce vibration
Available services

Latch looks more simple without catch.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
