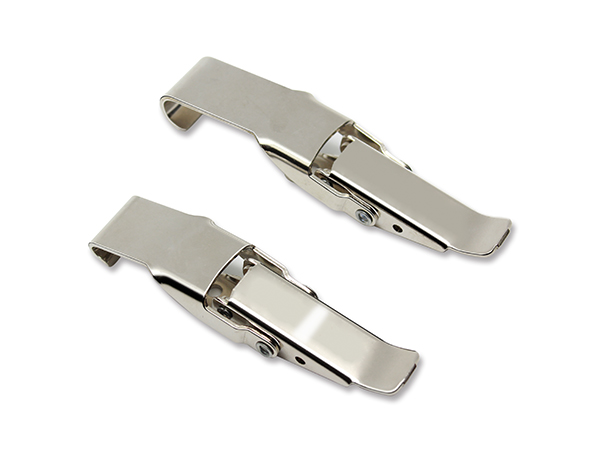

Flexible & Damping Toggle Latch

A143B

Flexible & Damping Toggle Latch

Nickel plated

application：Vehicles,Medical equipment engineering machinery

catalogue CAD data

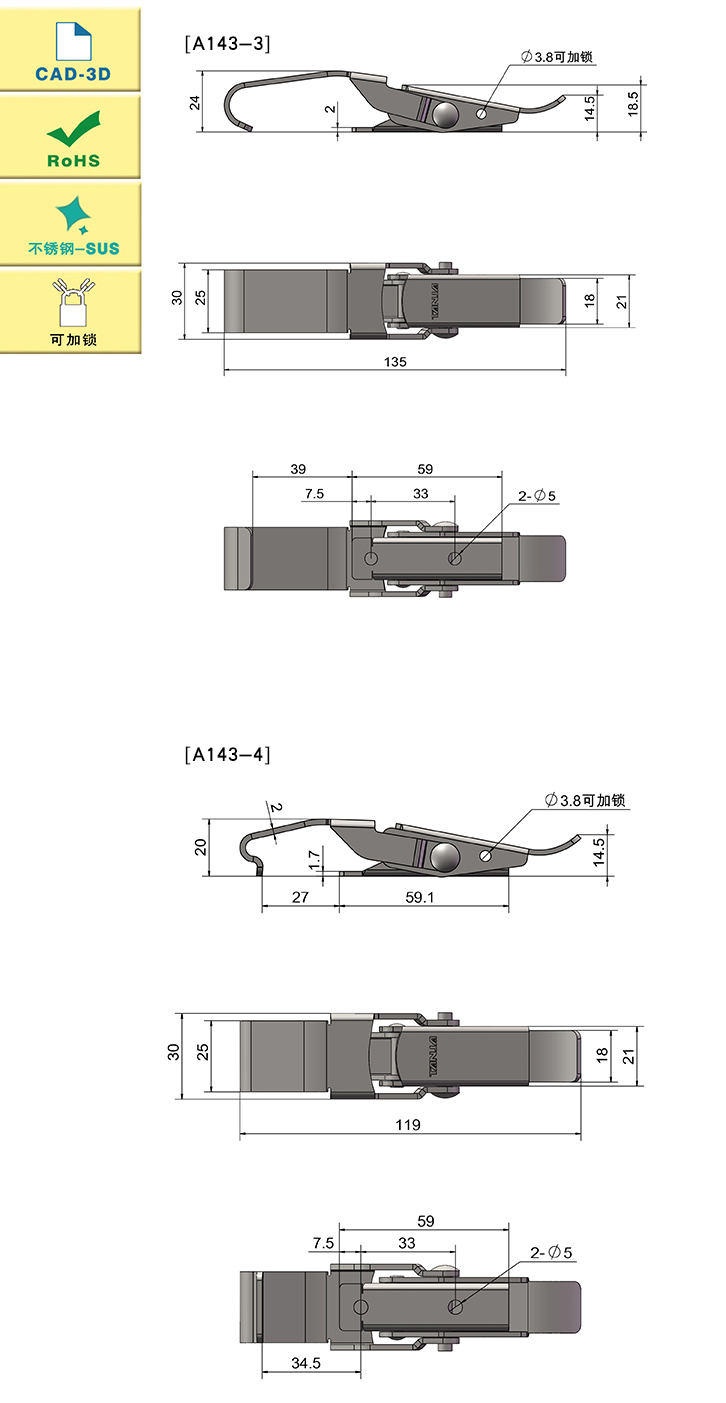

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
A143B-3	Lockable	135	SUS304	104	500	4000
A143B-4	Lockable	119	SUS304	95	500	4000

characteristic

Cambered spring wire to apply prepressing & reduce vibration

Without catch, convenient to operate

Available services

With side hole,can plug into pin to prevent loosening.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
