Flexible & Damping Toggle Latch

A305B

Flexible & Damping Toggle Latch

polish

application:Small toolbox/instrument box/Small & medium-sized case cover

catalogue CAD data

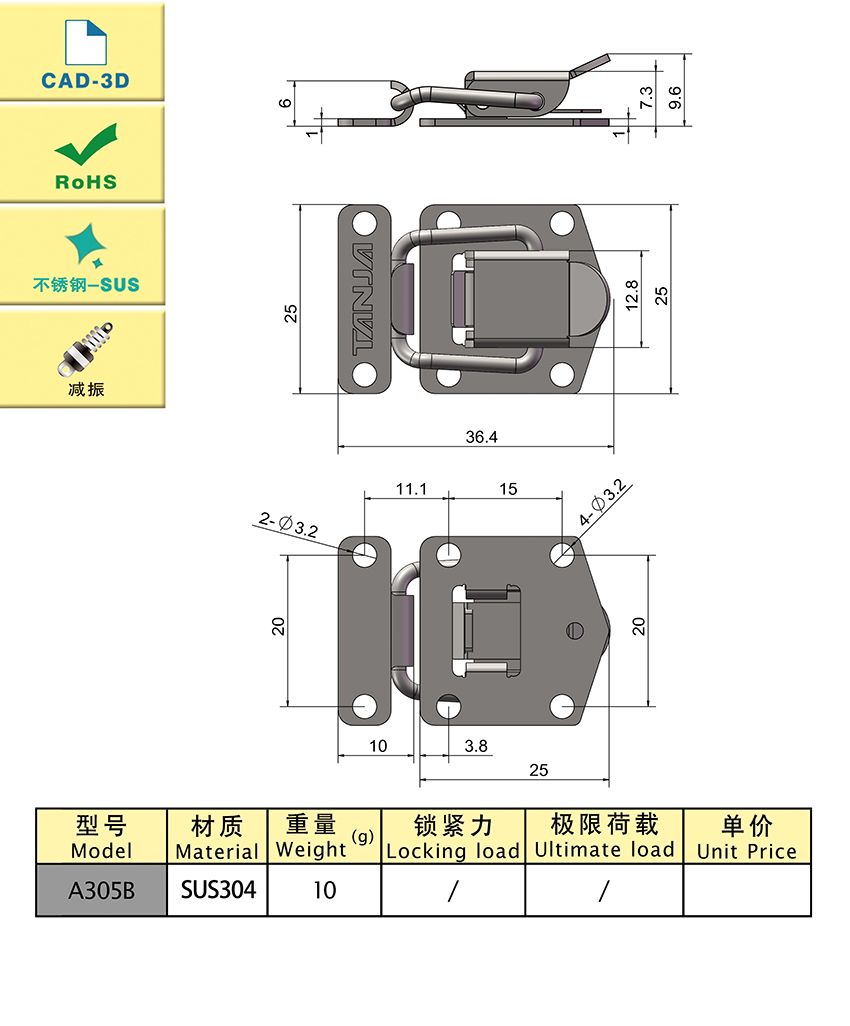

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A305B Damping 36 SUS304 10 50 350
characteristic
Cambered spring wire to apply prepressing & reduce vibration
Available services
suitable for small space
