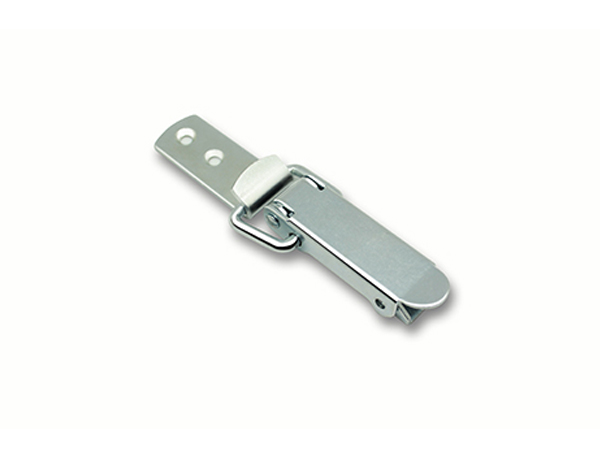

Safety Toggle Latch

4007B

Safety Toggle Latch

Polished

application:Equipment/engineering/machinery

catalogue CAD data

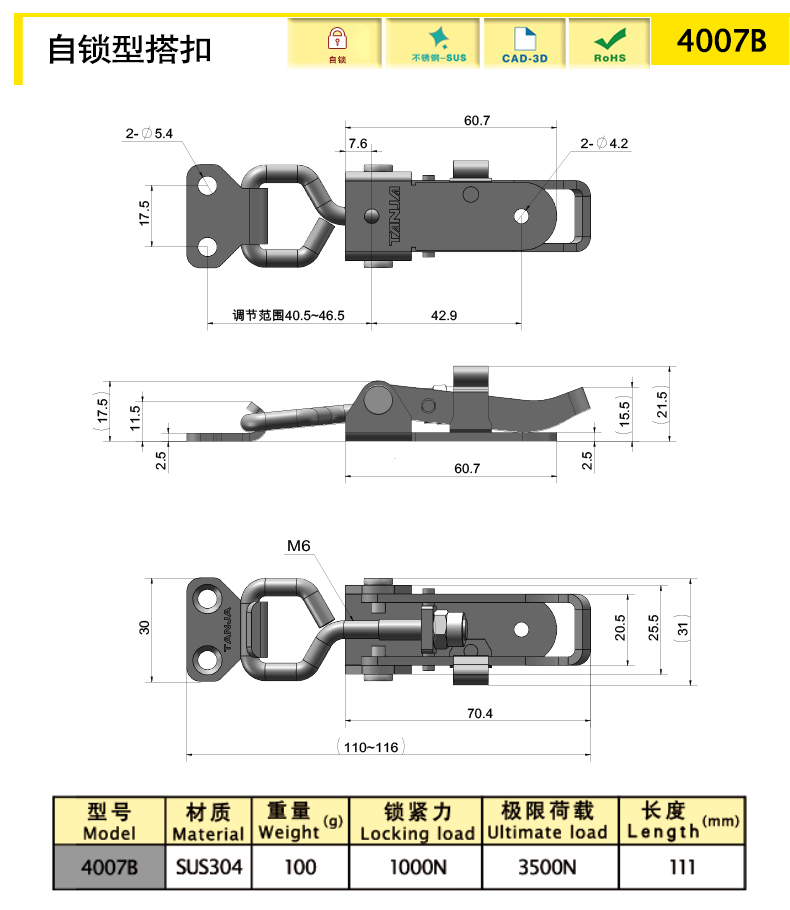

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
4007B Self lock,Adjustable 111 SUS304 100 1000 3500
characteristic

The self-locking elastic steel plate can make the toggle latch safe and self-locking.


Available services

Self-locking function.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
