Flexible & Damping Toggle Latch

A208B

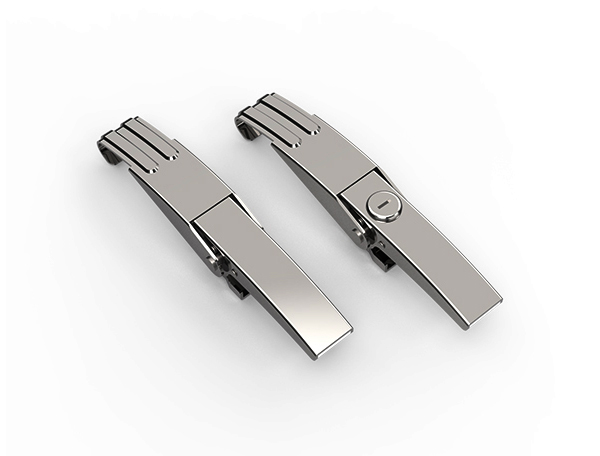

Flexible & Damping Toggle Latch

Polished

application：Vehicle / Medical Machinery / Construction Machinery

catalogue CAD data

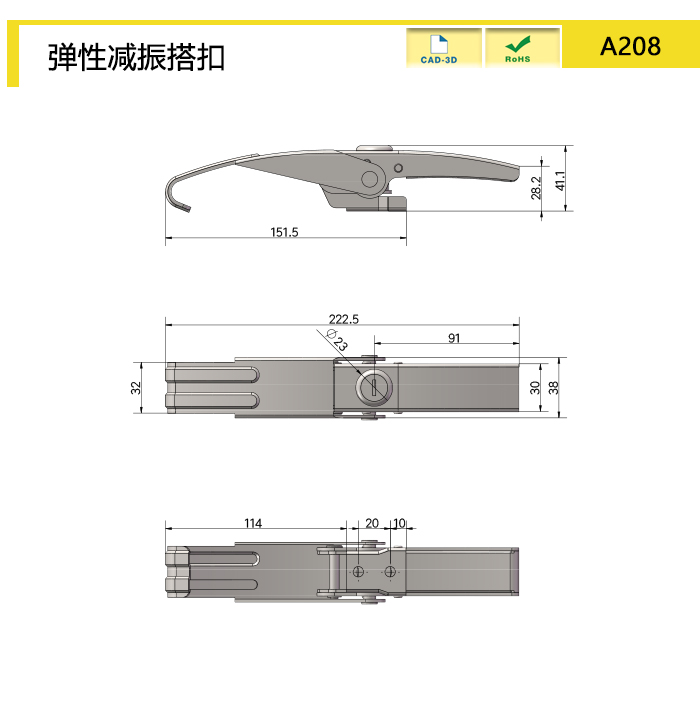

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
A208B-S	Lockable	222.5	SUS304	378	1000	6000
A208B	/	222.5	SUS304	322	1000	6000

characteristic

Its own elastic steel sheet makes the toggle latch have the function of pre-compression and vibration reduction.
No need to use hooks, more convenient to use

Available services

With lock, reloadable.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Product Name
Flexible & Damping Toggle Latch

More information

If you have more technical advice，Please call
0535-6217008-801
