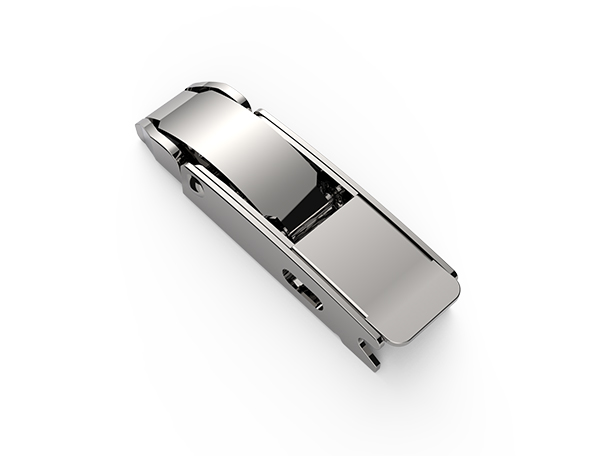

Concealed & Damping Toggle Latch

A212

Concealed & Damping Toggle Latch

Zinc plated / Polished

application:Small & medium-sized case cover,Instrument case,Mechanical equipment

catalogue CAD data

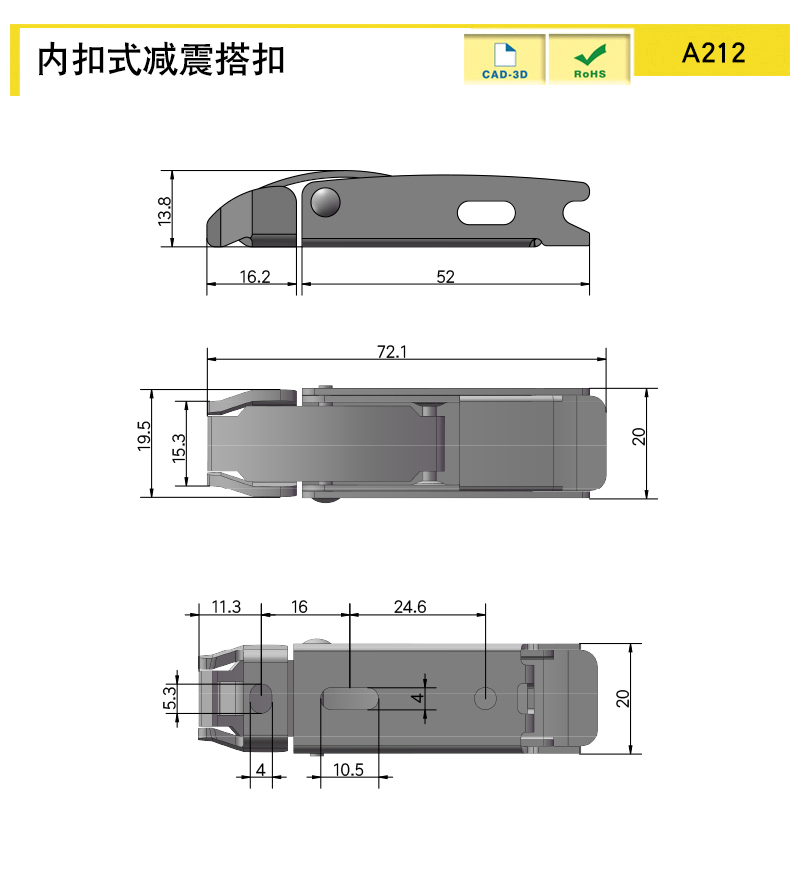

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A212 Damping 72.1 SPCC 45 200 1300
A212B Damping 72.1 SUS304 45 200 1300
characteristic
Its own elastic steel sheet makes the toggle latch have the function of pre-compression and vibration reduction
Available services

With side hole, can be equipped with lock or lead seal to prevent loosening.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
