Concealed & Adjustable Toggle Latch

A214

Concealed & Adjustable Toggle Latch

Polished

application:Vehicles, Medical Machinery, Plastic Machinery Equipment etc

catalogue CAD data

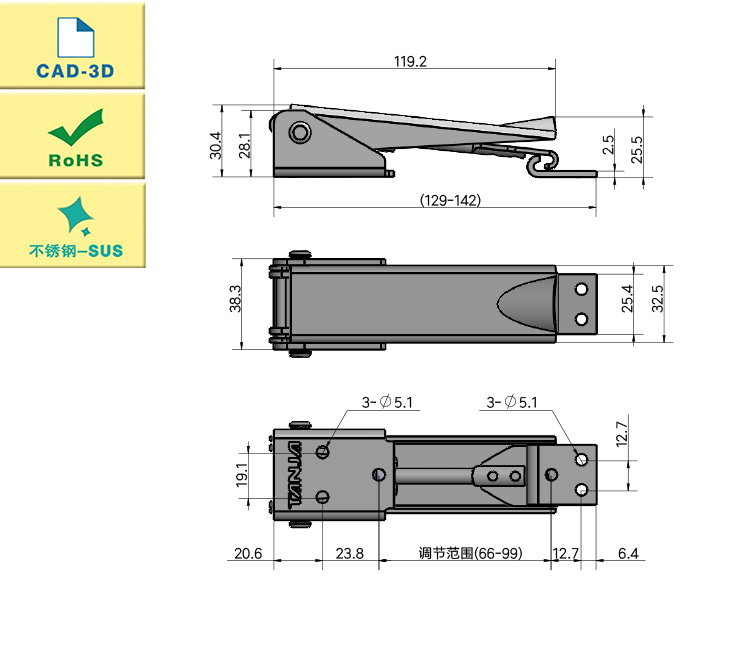

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A214 Adjustable 129~142 SUS304 255 600 4000
characteristic
Concealed toggle latch can provide the ability to conceal all mounting hardware and latching functions under the handle. Under-center mechanism allows secure off-plane latching
Available services

With adjustable function, easy to operate.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
