Handle Type Toggle Latch

A134B

Handle Type Toggle Latch

Polished

application:Medical equipment / food equipment / communication equipment

catalogue CAD data

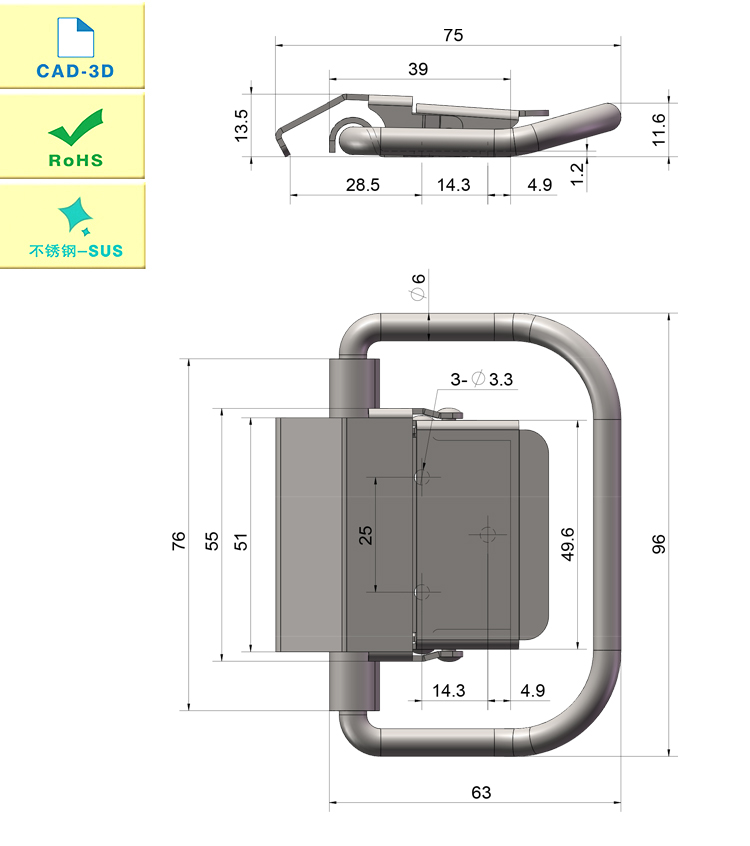

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A134B Handle 96 SUS304 65 500 2000
characteristic
Easy to clean, loose fitting of all parts without leaving dead corners.
Quick use, integrated design of buckle and handle, can be taken and opened at the same time.
Safe, made of high hardness spring steel plate, the locking force is constant for a long time.
Corrosion resistance and sanitation, special SUS304 stainless steel material, salt spray test for more than 200h.
Available services

One-piece design, both toggle latch and handle.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
