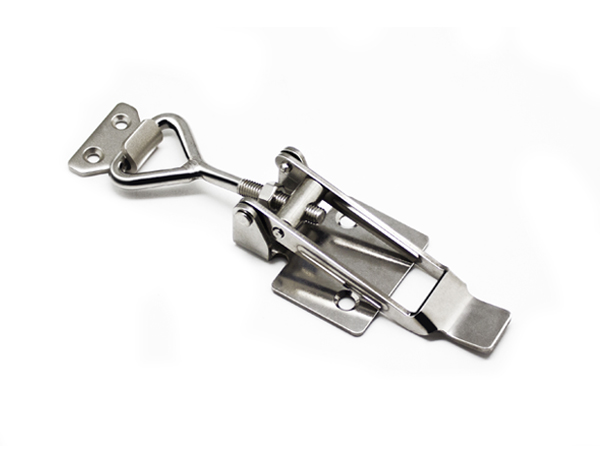

Heavy Duty Adjustable Toggle Latch

4004B

Heavy Duty Adjustable Toggle Latch

Polished

application:Equipment/Engineering/Mechanical

catalogue CAD data

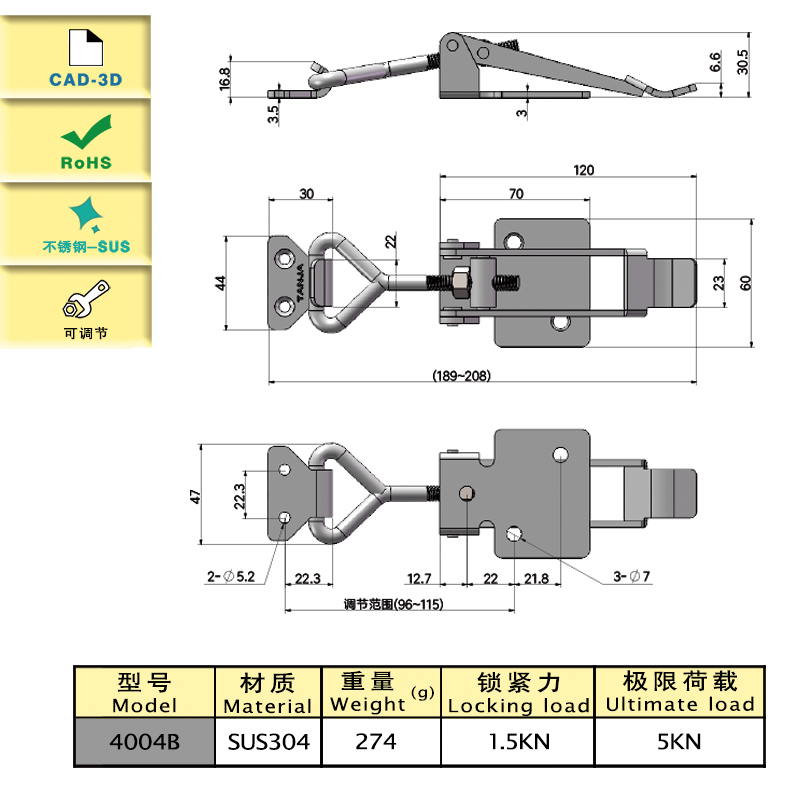

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
4004B Adjustable 200 SUS304 274 1500 5000
characteristic
Screw can adjust the mounting distance & clipping force
Available services

Heavy-duty, suitable for occasions with greater tension.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
