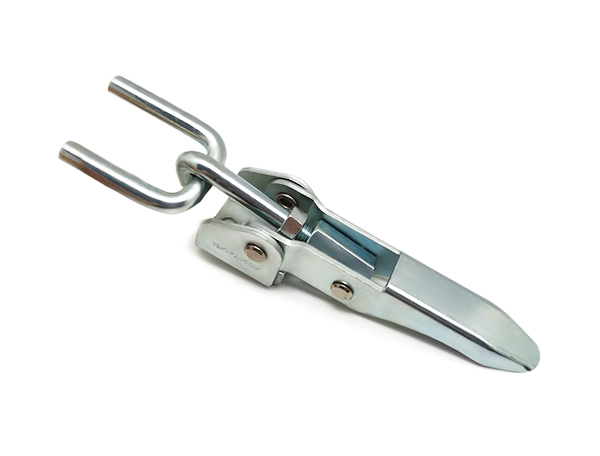

Adjustable Toggle Latch

43150

Adjustable Toggle Latch

Zinc plated / Polish

application:Vehicle/ Packing Case / Mechanical equipment / Oscillatory machine

catalogue CAD data

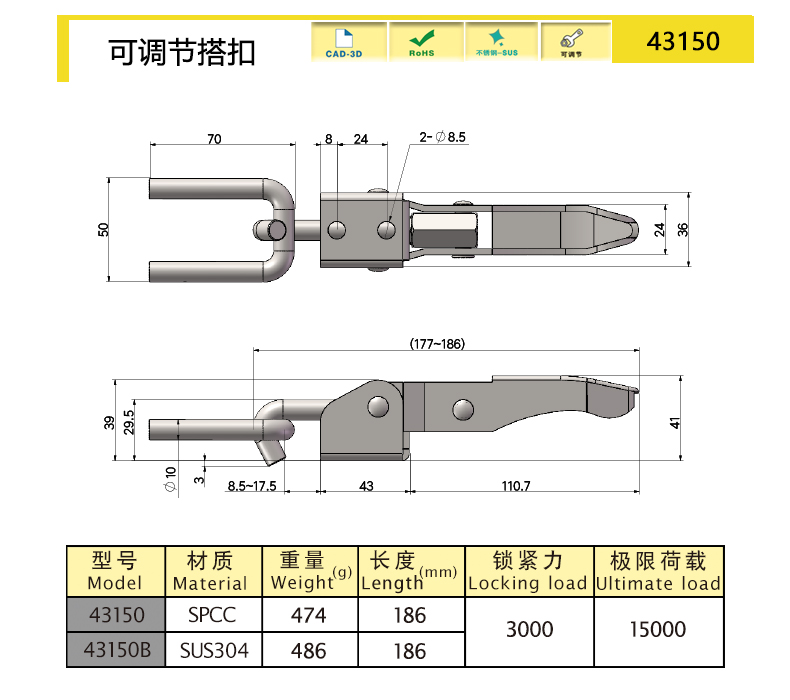

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
43150 Adjustable 186 SPCC 474 3000 15000
43150B Adjustable 186 SUS304 486 3000 15000
characteristic

U-shackle can adjust the mounting distance and tightness

Suitable for heavy duty
Available services

Universal toggle latch, widely used in different fields.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
