Adjustable Toggle Latch

43160

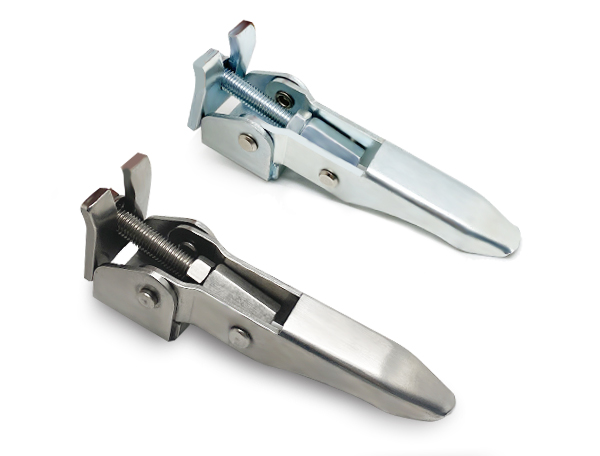

Adjustable Toggle Latch

Zinc plated / Polished

application：Vehicle/ Packing Case / Mechanical equipment / Oscillatory machine

catalogue CAD data

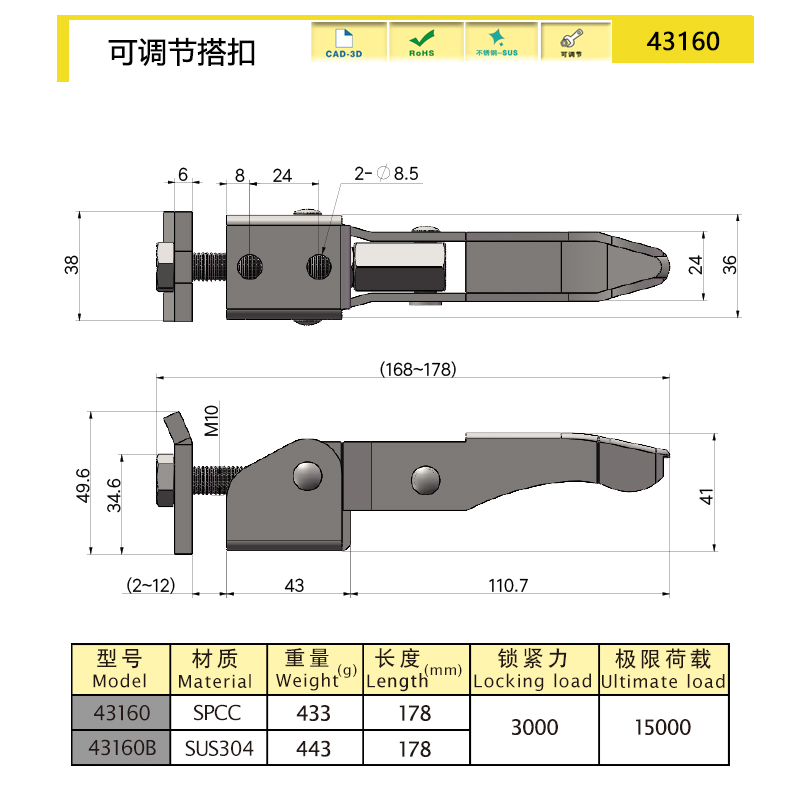

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
43160	Adjustable	178	SPCC	433	3000	15000
43160B	Adjustable	178	SUS304	443	3000	15000

characteristic

U-shackle can adjust the mounting distance and tightness

Suitable for heavy duty

Available services

Universal toggle latch, widely used in different fields.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Product Name
Adjustable Toggle Latch
