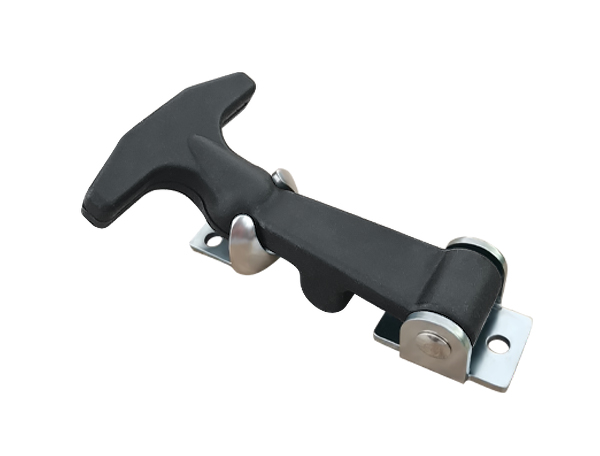

Flexible & Damping Toggle Latch

A124

Flexible & Damping Toggle Latch

application：Hood/vibrating machinery

catalogue CAD data

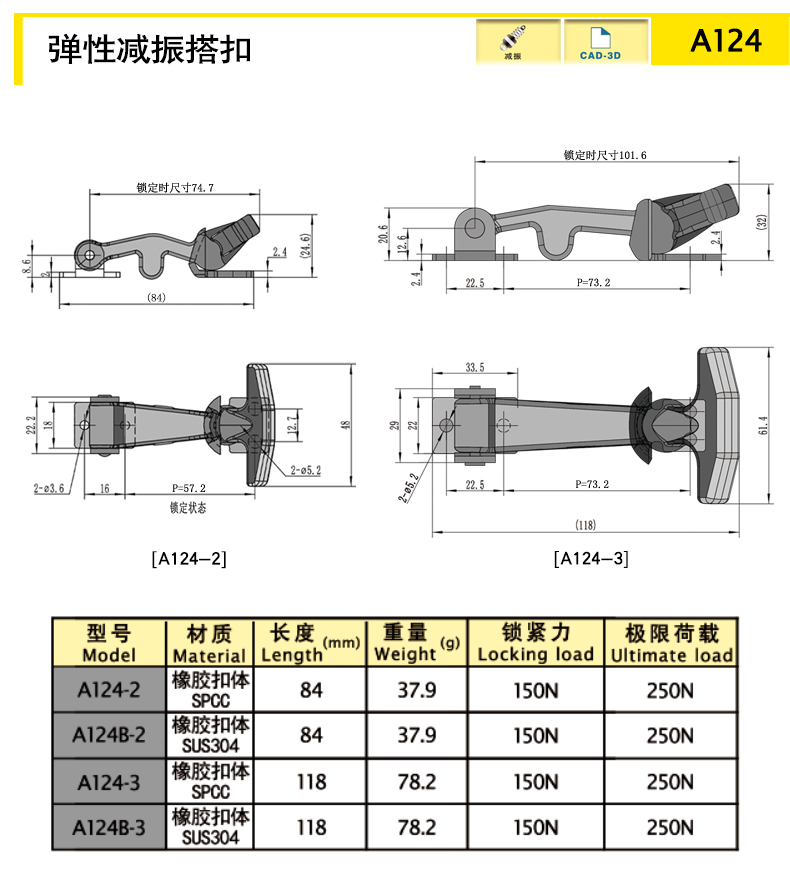

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
A124-2	Damping	84	Elastomer	37.9	150	250
A124B-2	Damping	84	Elastomer	37.9	150	250
A124-3	Damping	118	Elastomer	78.2	150	250
A124B-3	Damping	118	Elastomer	78.2	150	250

characteristic

The high quality rubber body buckle has the function of reducing vibration, which can maintain the elastic preloading of the connector.

Available services

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Product Name
Flexible & Damping Toggle Latch

More information

If you have more technical advice，Please call
0535-6217008-801
