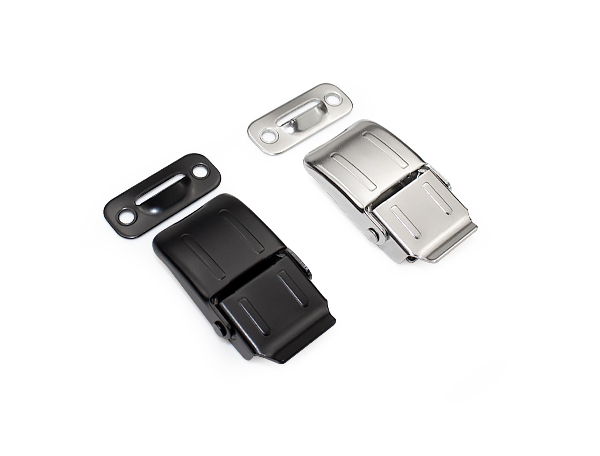

Concealed Toggle Latch

A219B

Concealed Toggle Latch

Polished/Electrophoresis

application:Food Equipment/Industrial Equipment/Medical Equipment

catalogue CAD data

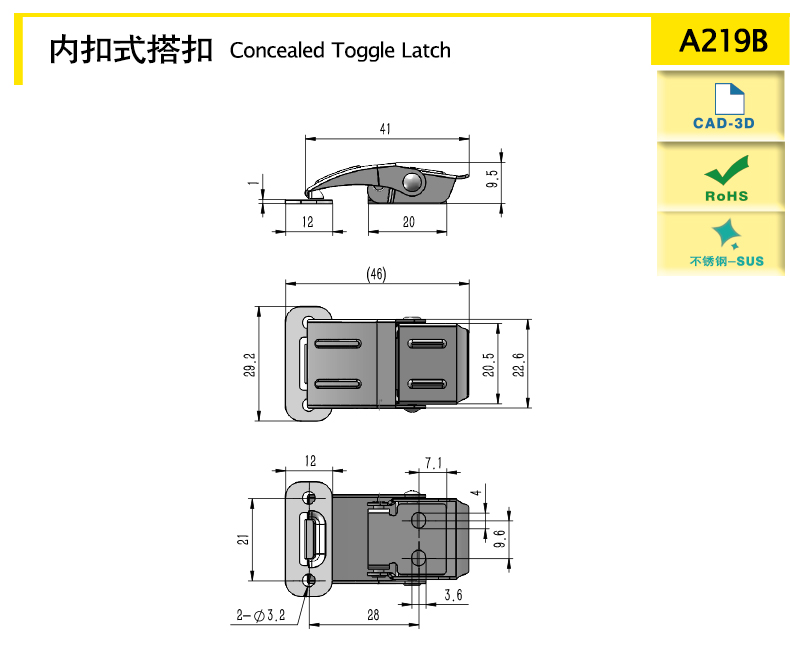

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A219B-304 Concealed 41 SUS304 16.2 300 1000
A219B-201 Concealed 41 SUS201 16.2 300 1000
A219B1-BK Concealed 41 SUS201 16 300 1000
characteristic
Concealed toggle latch, strong integrity and compact structure
Available services
Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
