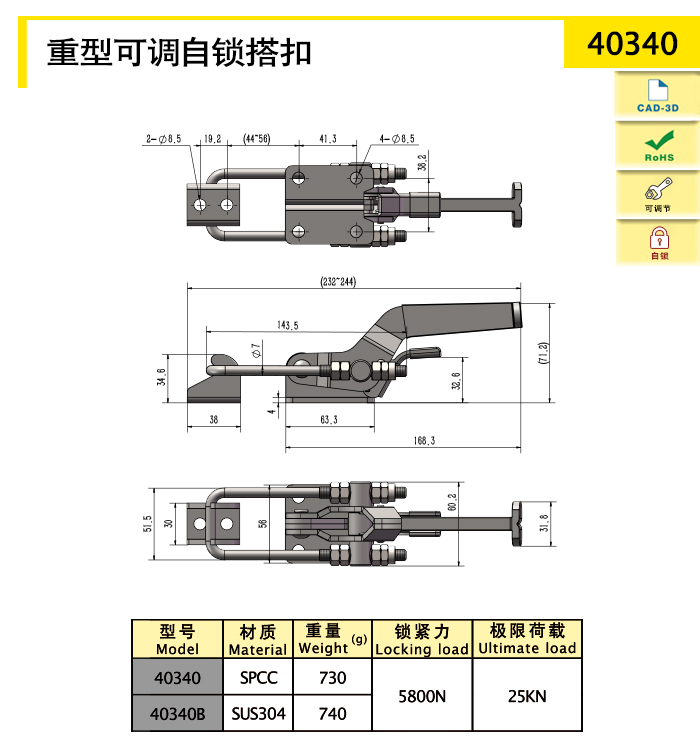

Product size diagram
Product size and properties
| Model Number | Function  | Length（mm） | Material | Weight (g) | Locking Force（N） | Ultimate Load（N） |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|
| 40340 | Self lock | 232-244 | SPCC | 730 | 5800 | 25000 |
 |
| 40340B | Self lock | 232-244 | SUS304 | 740 | 5800 | 25000 |
|
characteristic
U-shaped screw can adjust installation distance and tightening tightness.
Heavy duty, suitable for higher tension situations, with multiple materials available.
Equipped with self-locking mechanism, pressing and closing the buckle can form self-locking to prevent accidental release.
Heavy duty, suitable for higher tension situations, with multiple materials available.
Equipped with self-locking mechanism, pressing and closing the buckle can form self-locking to prevent accidental release.
Available services
Product Name
Heavy-duty Adjustable Self-lock Toggle Latch
Heavy-duty Adjustable Self-lock Toggle Latch
