Adjustable & Safety Toggle Latch

A117B

Adjustable & Safety Toggle Latch

Polished

application:Experimental testing instruments, food, medical equipment

catalogue CAD data

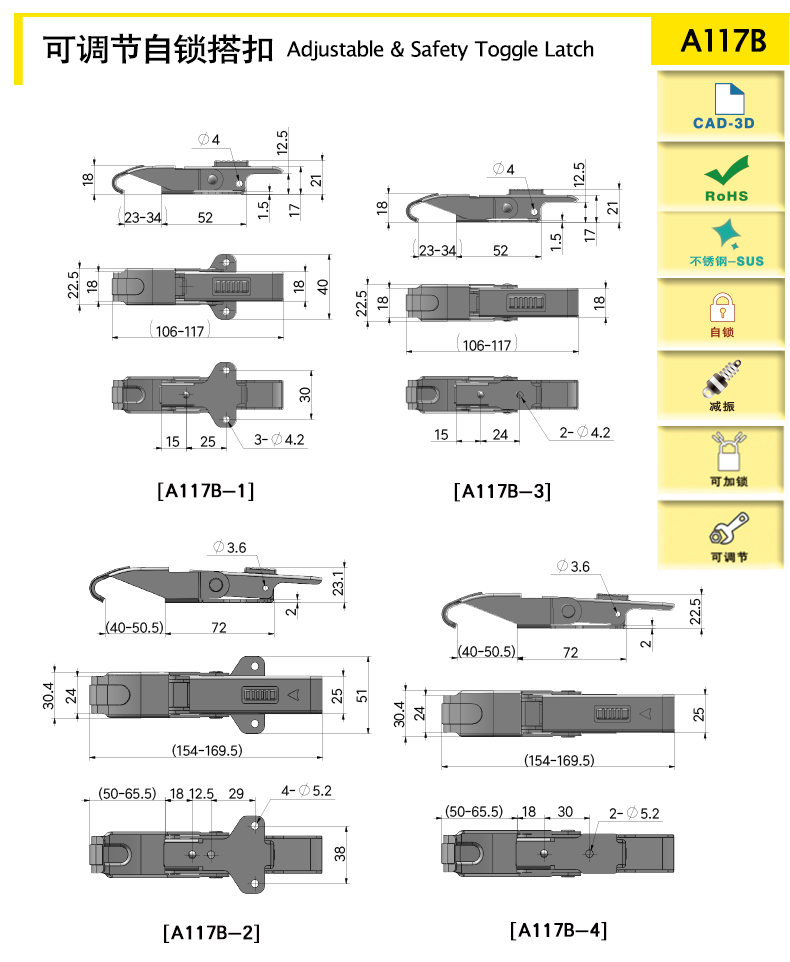

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A117B-1 Adjustable,Self lock,Damping,Lockable 106-117 SUS304 100 500 1500
A117B-2 Adjustable,Self lock,Damping,Lockable 154-169.5 SUS304 190 800 2000
characteristic
With side holes, can be equipped with lock or lead seal to prevent loosening

The self-locking device can realize the self-locking function, with reliable safety, and the latch will not be loosened due to vibration.
