Adjustable & Safety Toggle Latch

A119B

Polished

application：Experimental testing instruments, food, medical equipment

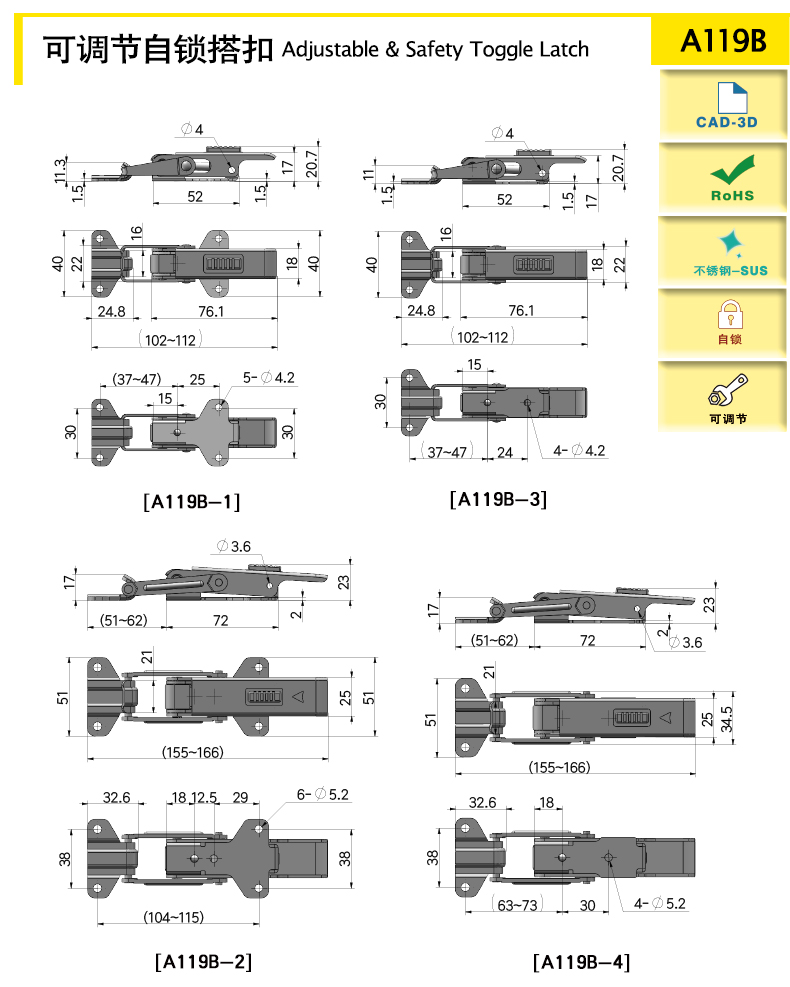

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
A119B-1	Adjustable,Self lock	102-112	SUS304	95	500	1500
A119B-2	Adjustable,Self lock	155-166	SUS304	210	800	2000

characteristic

With side holes, can be equipped with lock or lead seal to prevent loosening

The self-locking device can realize the self-locking function, with reliable safety, and the latch will not be loosened due to vibration.

The locking distance is adjustable, and the locking distance can be adjusted by the screw rod to achieve different locking forces
