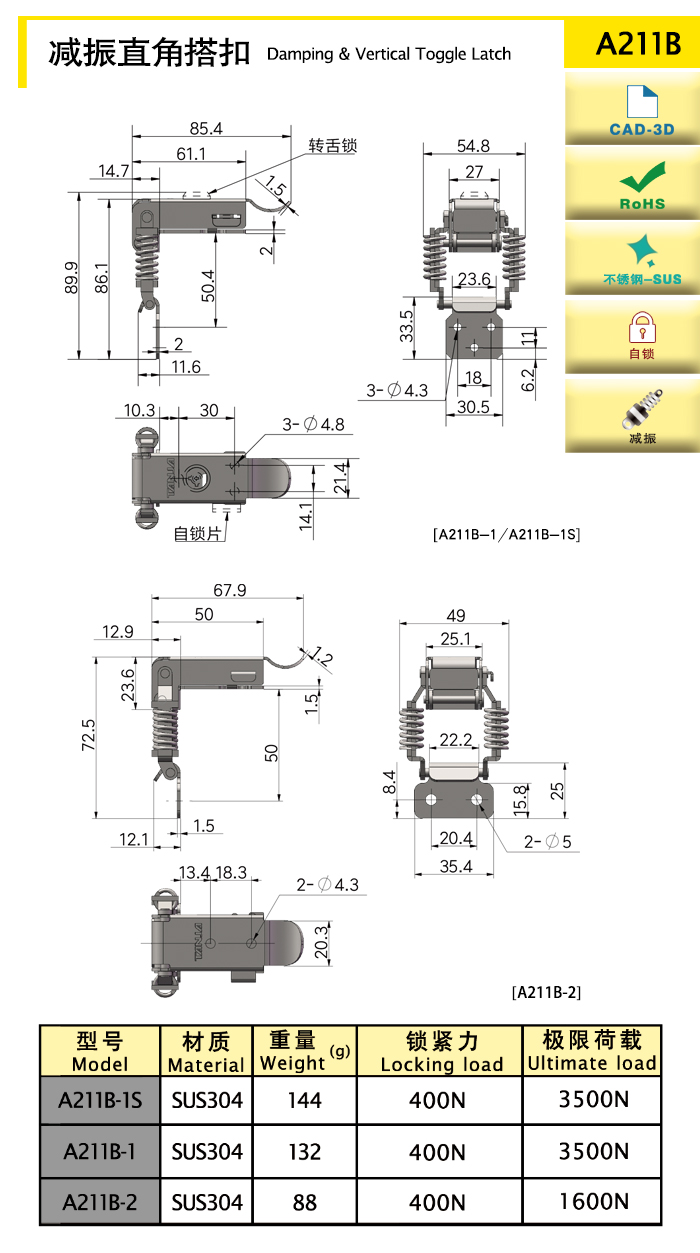

Product size diagram
Product size and properties
| Model Number | Function  | Length（mm） | Material | Weight (g) | Locking Force（N） | Ultimate Load（N） |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|
| A211B-1S | Damping | 85.4 | SUS304 | 144 | 400 | 3500 |
 |
| A211B-1 | Damping,Lockable | 85.4 | SUS304 | 132 | 400 | 3500 | |
| A211B-2 | Damping,Lockable | 67.9 | SUS304 | 88 | 400 | 1600 |
|
characteristic
Can be installed at the corner of the box.
Compression springs have elastic preloading and vibration reduction functions.
The safety lock device can achieve self-locking function, which is safe and reliable, and the latch will not accidentally pop open due to vibration.
Compression springs have elastic preloading and vibration reduction functions.
The safety lock device can achieve self-locking function, which is safe and reliable, and the latch will not accidentally pop open due to vibration.
Available services
Product Name
Damping & Vertical Toggle Latch
Damping & Vertical Toggle Latch
More information
If you have more technical advice，Please call0535-6217008-801
