Small Heavy-duty Toggle Latch

A322

Small Heavy-duty Toggle Latch

Zinc plated / Polish

application:Small case, Device box cover, Toolbox

catalogue CAD data

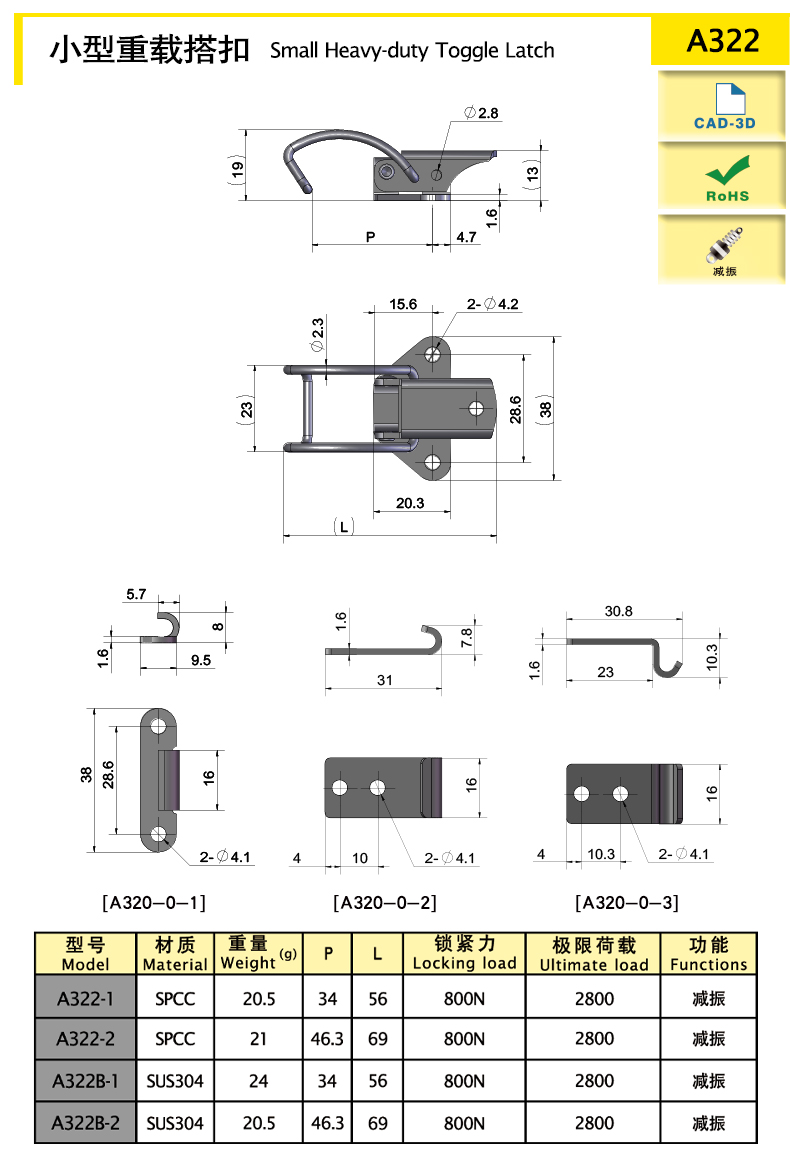

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A322-1 Damping 56 SPCC 23 800 2800
A322-2 Damping 69 SPCC 24.1 800 2800
A322B-1 Damping 56 SUS304 23 800 2800
A322B-2 Damping 69 SUS304 24.1 800 2800
A320-0-1 / / SPCC 5.5 / /
A320-0-2 / / SPCC 7.2 / /
A320-0-3 / / SPCC 7.2 / /
A320B-0-1 / / SUS304 5.5 / /
A320B-0-2 / / SUS304 7.2 / /
A320B-0-3 / / SUS304 7.2 / /
characteristic

Mounting hole exposed. Easy to install

Use for smaller space

Available services

Side hole,can plug into pin or lead seal to prevent loosening.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
