Heavy Duty Adjustable Toggle Latch

4005

Heavy Duty Adjustable Toggle Latch

Zinc plated / Polish

application:Vehicles,Medical equipment,Engineering machinery

catalogue CAD data

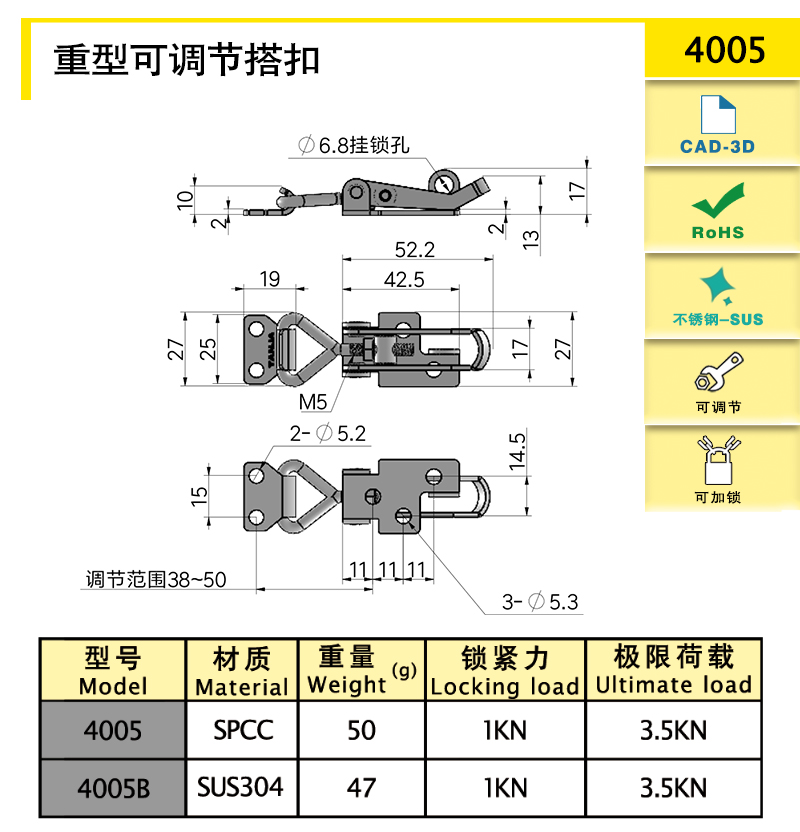

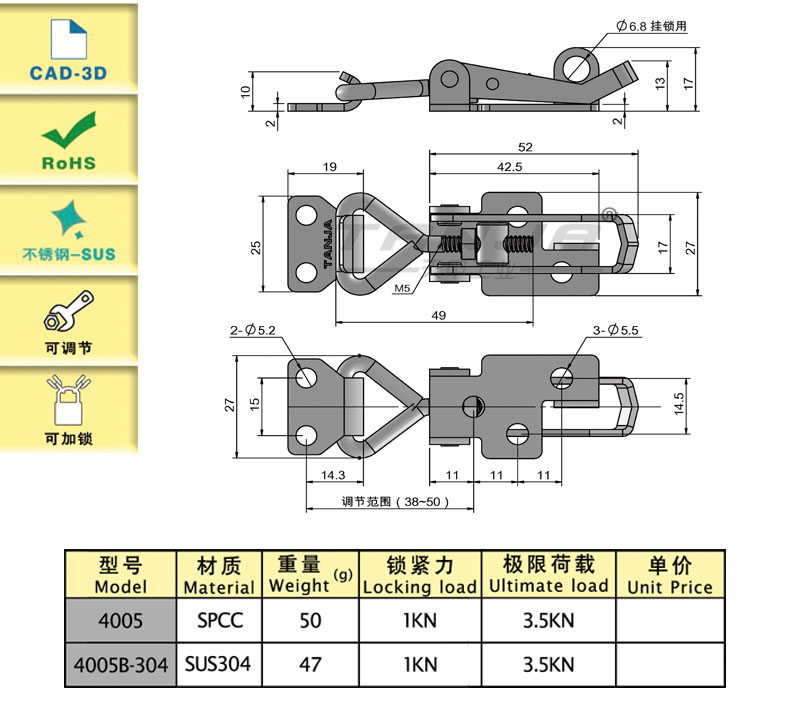

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
4005B Adjustable,Lockable 94.2 SUS304 47 1000 3500
4005 Adjustable,Lockable 94.2 SPCC 50 1000 3500
characteristic

With lockhole,padlock or lead seal is available

Available services

Adjustable latch,convenient for operation.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
