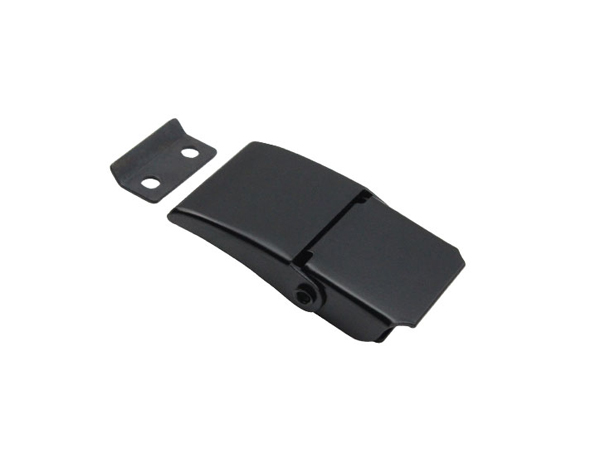

Concealed Toggle Latch

A27

Concealed Toggle Latch

Electrophoresis

application:Small case cover, Toolbox, Cleaner

catalogue CAD data

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A27 Concealed 47.7 SPCC 20 200 800
characteristic

Concealed toggle latch, better visual effects,compact structure

Available services

Electrophoresis paint, antirust & beautiful.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Must choose
Please select the required product catalogue
Interested product
Company name example)Yantai Tanja Precision Machinery Co Ltd
Name of department example)Development Department
Name
Address
Telephone example)0535-621-7008
Fax example)0535-2277515-803
Email

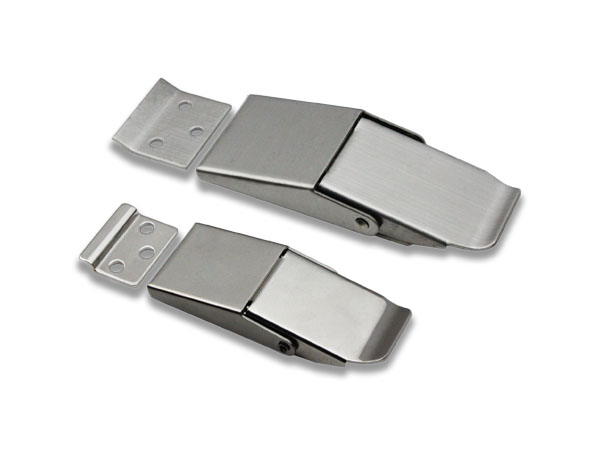

Similar product recommendation
