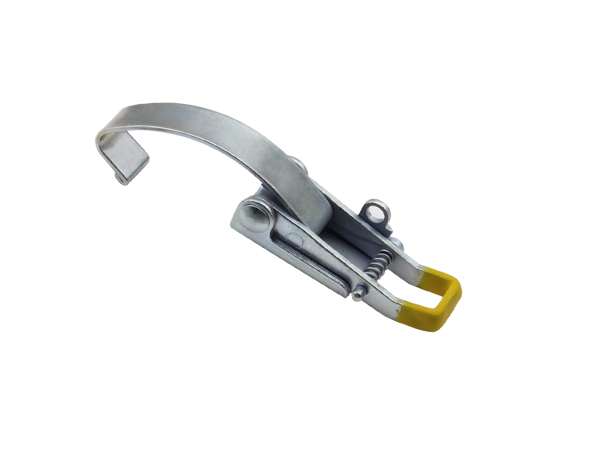

Flexible & Safety Toggle Latch

4031

Flexible & Safety Toggle Latch

Zinc-plated

application:Small & medium-sized case cover,Mechanical equipment,Vehicles

catalogue CAD data

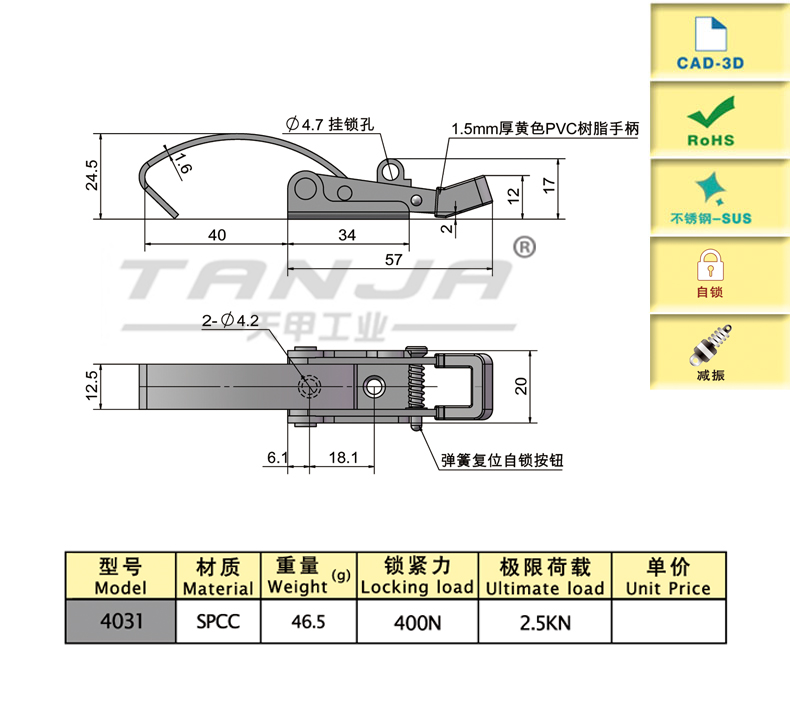

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
4031 Damping,Self lock 98 SPCC 46.5 400 2500
characteristic

Spring-steel hook reduce vibration

without catch,convenient to operate

Available services

Safety pin has self-locking function,prevent the latch accidental opening.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
