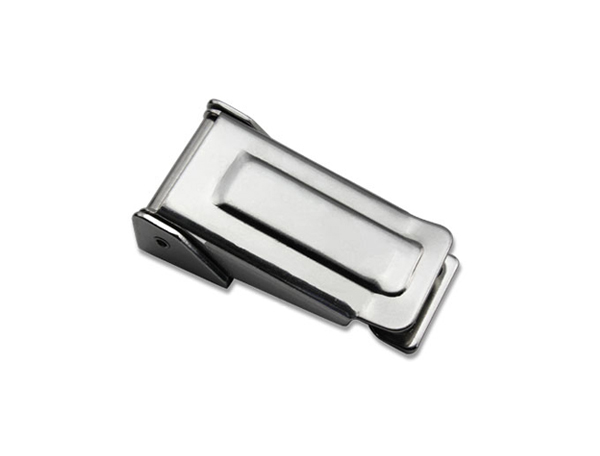

Concealed & Lockable Toggle Latch

A106

Concealed & Lockable Toggle Latch

Powder coating / Electrophoresis

application:Advertising box, Communication equipment, Electrical cabinet

catalogue CAD data

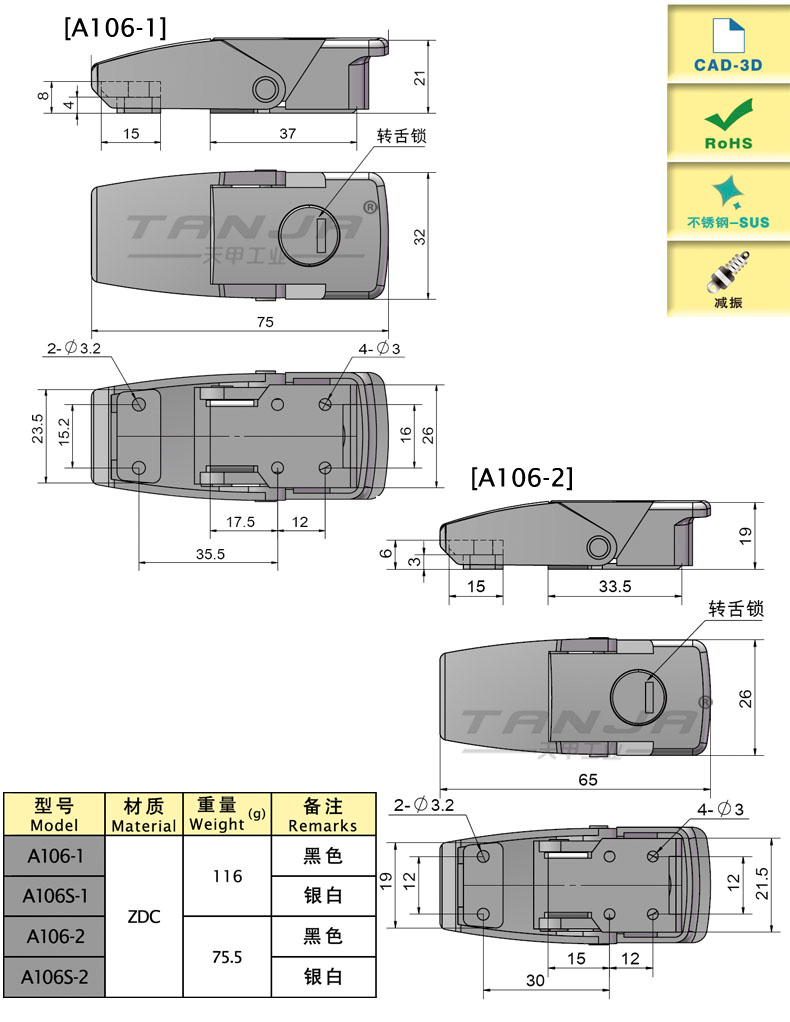

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A106-1 Lockable,Concealed 75.5 ZDC 116 / /
A106S-1 Lockable,Concealed 75.5 ZDC 116 / /
A106-2 Lockable,Concealed 65.6 ZDC 75.5 / /
A106S-2 Lockable,Concealed 65.6 ZDC 75.5 / /
characteristic

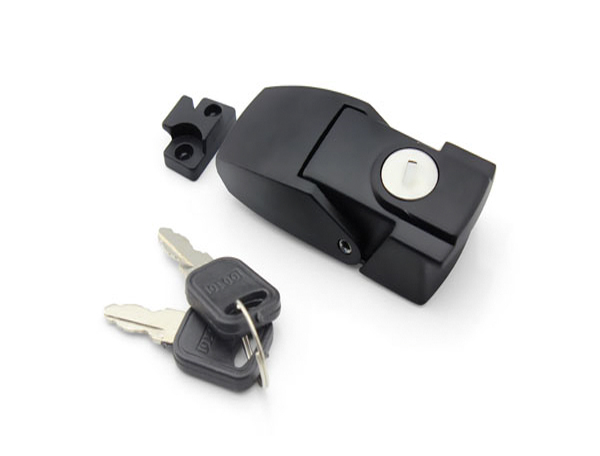

With lock cylinder & key,anti-theft,enhancing security

Inward catch,better visual effects compact structure

Available services

Powder coating (Silver) / Electrophoresis(Black).

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
