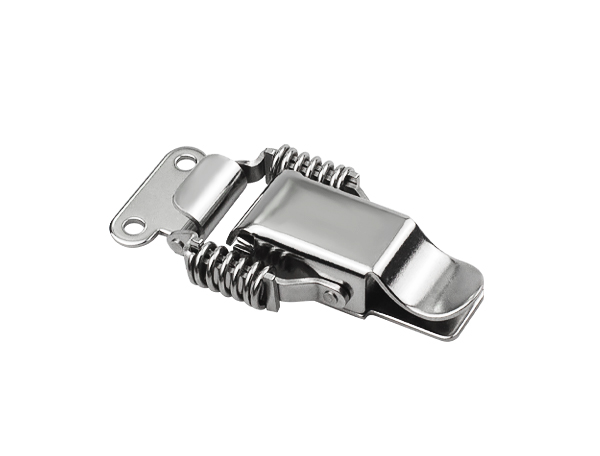

Draw Latch

A20

Draw Latch

Nickel-plated / Polish

application：Small case, Device box cover, Toolbox

catalogue CAD data

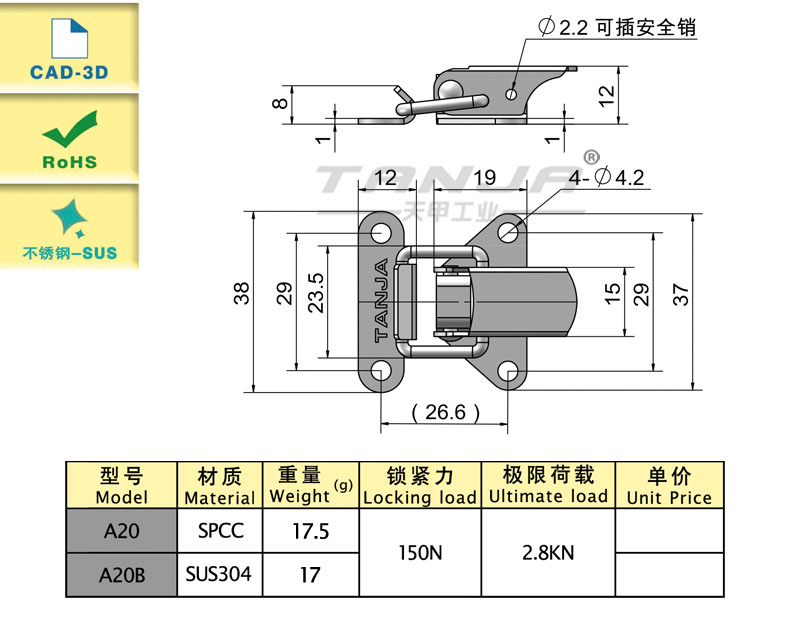

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
A20	Draw latch	49.5	SPCC	17.5	150	2800
A20B	Draw latch	49.5	SUS304	17	150	2800

characteristic

Mounting hole exposed. Easy to install

Use for smaller space

Available services

Side hole,can plug into pin or lead seal to prevent loosening.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
