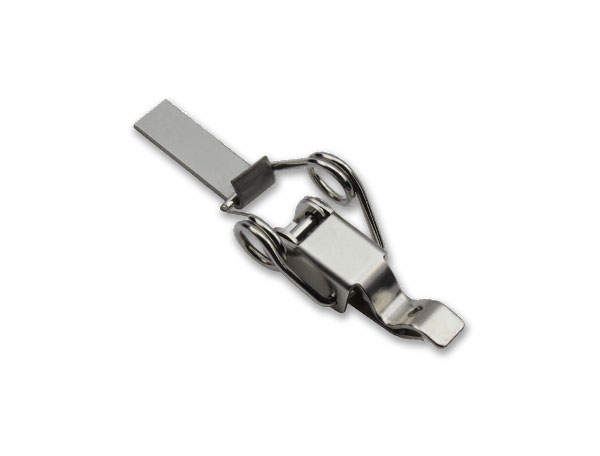

Flexible & Damping Toggle Latch

A59B

Flexible & Damping Toggle Latch

Polish

application:Food mold, Toolbox, Bridge

catalogue CAD data

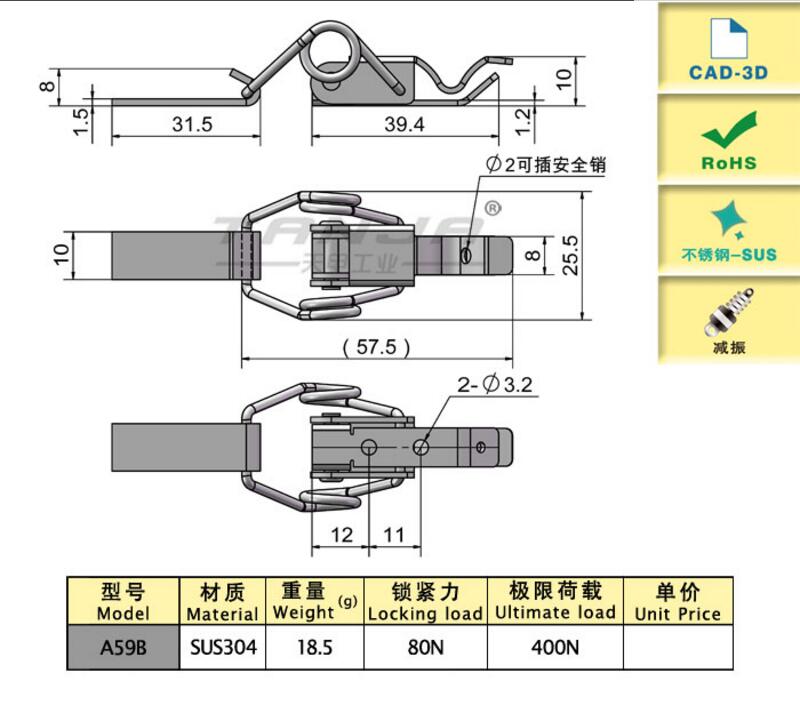

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A59B Damping 56.2 SUS304 18.5 80 400
characteristic

Linear spring reduce vibration &apply prepressing

Available services
Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
