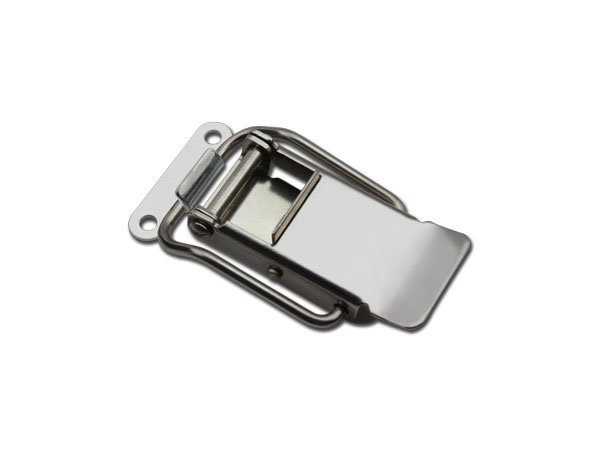

Safety Toggle Latch

A86

Safety Toggle Latch

Polish

application:Precision Container Cover,Small &Medium -sized Case Cover, Medical ,Food &Aircraft Precision Equipment Instrument

catalogue CAD data

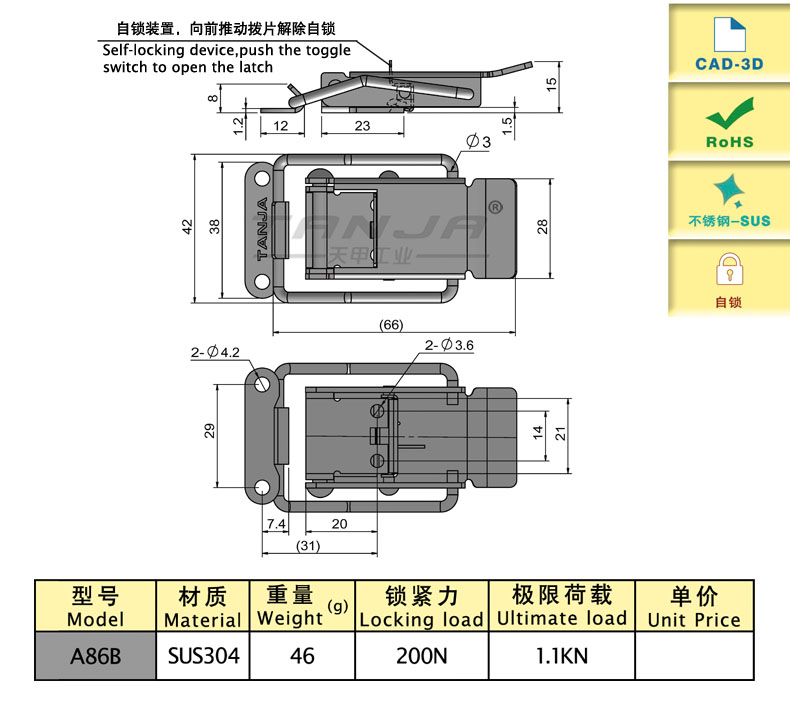

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A86B Self lock 75 SUS304 46 200 1100
characteristic

Adoption of unique self-lock design,prevent the latch accidental opening,convenient to operate

Available services

Use for smaller space.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
