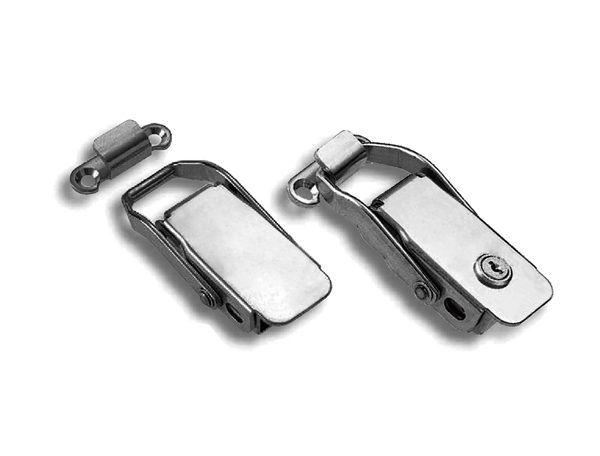

Damping&Lockable Toggle Latch

A112B

Damping&Lockable Toggle Latch

Polish

application:Advertising box / food &medical equipment

catalogue CAD data

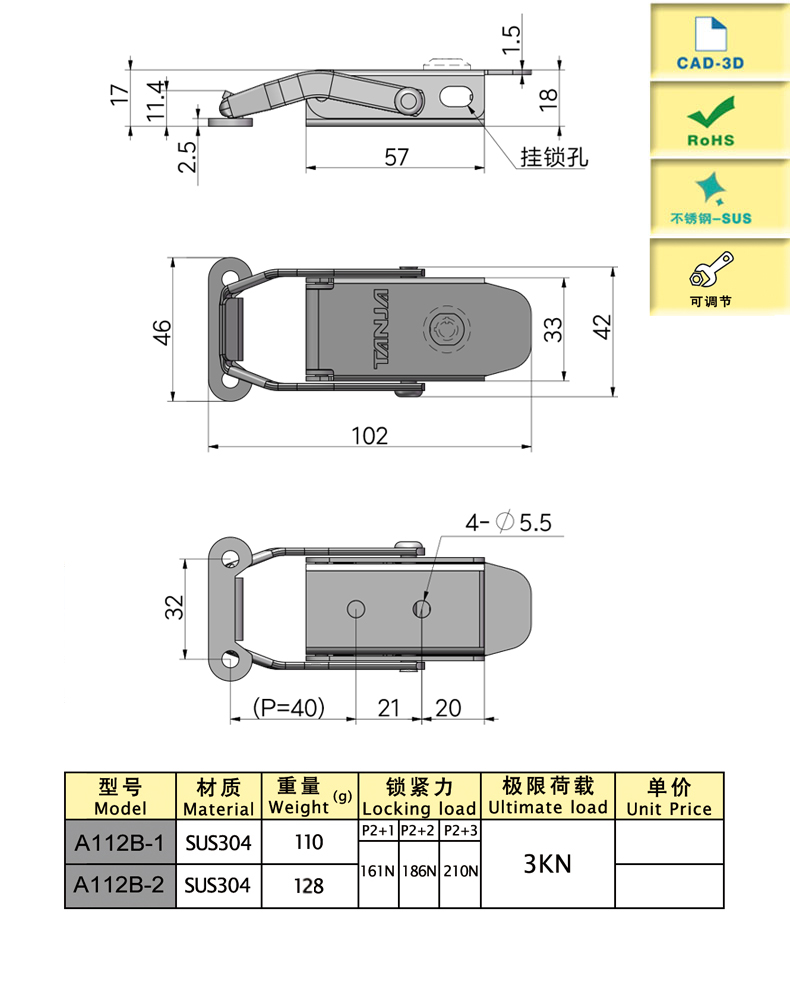

Product size diagram

Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A112B-1 Concealed,Damping 103 SUS304 110 210 3000
A112B-2 Concealed,Damping,Lockable 103 SUS304 128 210 3000
characteristic

Spring inside to reduce vibration, can keep prepressing to connection

With lock cylinder & key , anti-theft, enhancing security

Available services

Side hole, can plug into pin to prevent loosening.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
