Damping Toggle Latch

A74

Damping Toggle Latch

Polish

application:Small & medium sized case cover / mechanical equipment /vehicles

catalogue CAD data

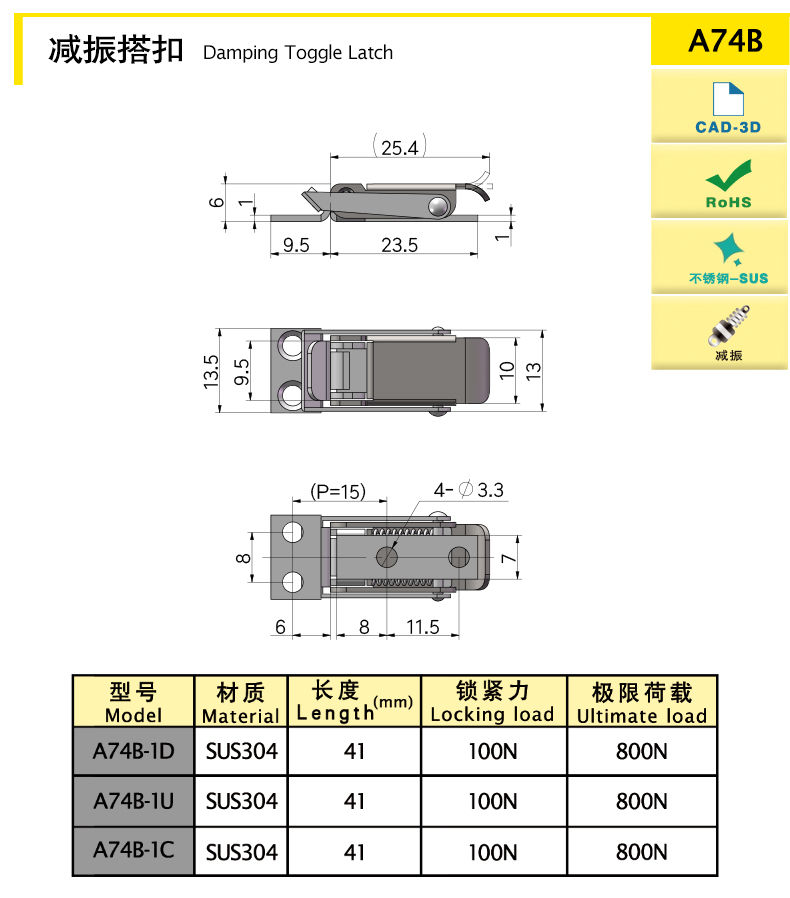

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A74B-1D Damping 41 SUS304 / 100 800
A74B-1U Damping 41 SUS304 / 100 800
A74B-1C Damping 41 SUS304 / 100 800
characteristic

Spring inside reduce vibration & apply prepressing.

Lightweight design, use for small space.

A74B-1D - Handle Bend Down
A74B-1U - Handle Upward Bend
A74B-1C - Handle straight

Available services

OEM ODM service available.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
