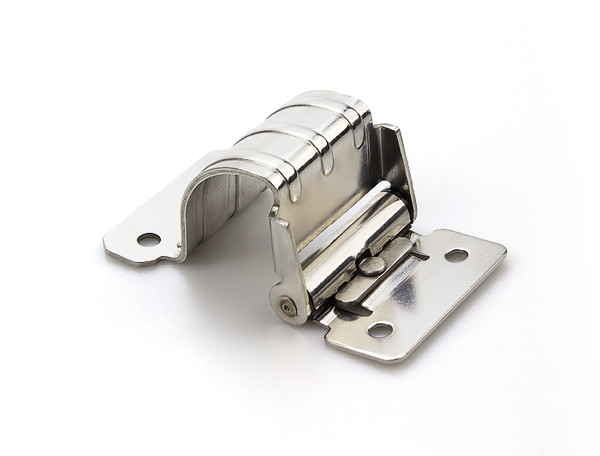

Torque Hinge

K203

Torque Hinge

Stainless steel polished

application：Electrical cabinet, instrument cabinet, all kinds of automatic equipment

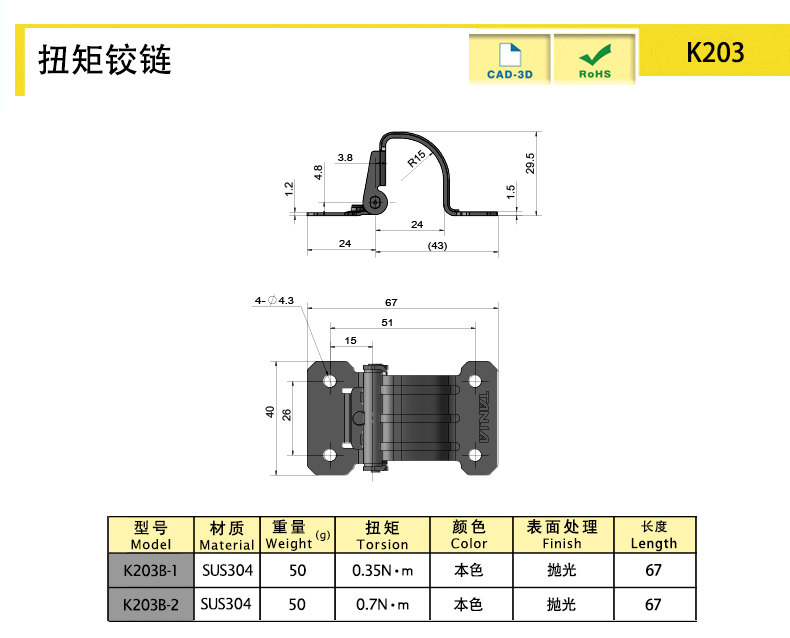

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function	3D DRAWINGS
K203B-1	SUS304	67	Silver	46.51	Fixed torque
K203B-2	SUS304	67	Silver	46.51	Fixed torque

characteristic

Installed on the back of the door, no hinges visible from the outside

Any stop, positioning can be stopped at any angle within the opening and closing range

Passed 20,000 switching tests

Can be mounted on aluminum profile frames

Available services

Installation: Exposed Mount

Product Name
Torque Hinge
