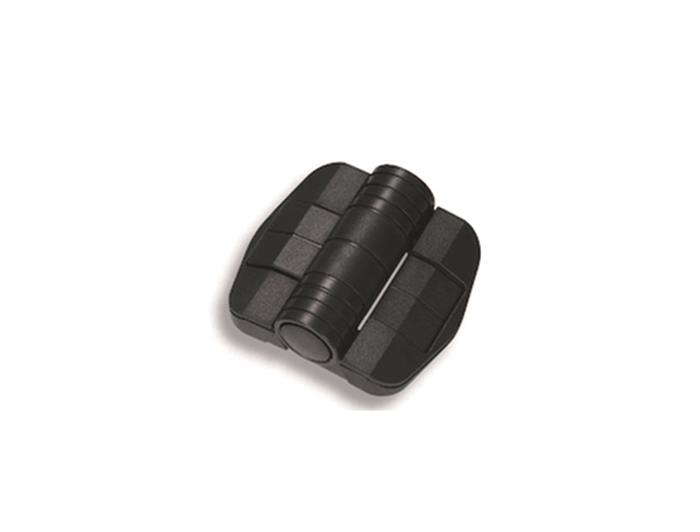

Positioning Torque Hinge

K207

Positioning Torque Hinge

Polyoxymethylene(POM)

application：Server cabinets, office machines, furniture

catalogue CAD data

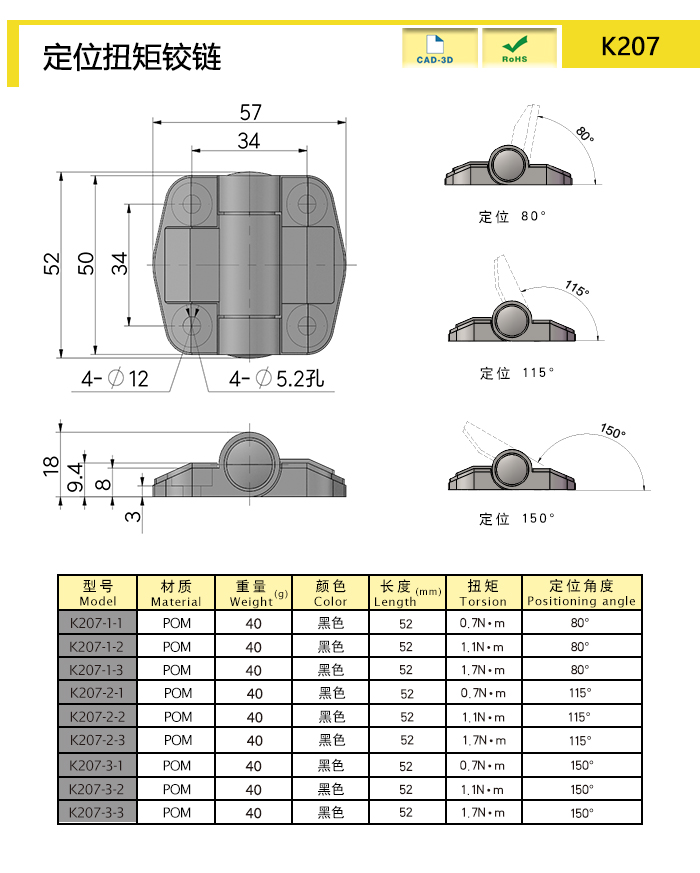

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K207-1-1	POM	52	Black	40	Fixed torque,Angle positioning
K207-1-2	POM	52	Black	40	Fixed torque,Angle positioning
K207-1-3	POM	52	Black	40	Fixed torque,Angle positioning
K207-2-1	POM	52	Black	40	Fixed torque,Angle positioning
K207-2-2	POM	52	Black	40	Fixed torque,Angle positioning
K207-2-3	POM	52	Black	40	Fixed torque,Angle positioning
K207-3-1	POM	52	Black	40	Fixed torque,Angle positioning
K207-3-2	POM	52	Black	40	Fixed torque,Angle positioning
K207-3-3	POM	52	Black	40	Fixed torque,Angle positioning

characteristic

K207-1 Positioning opening and closing angle 0°/80°
K207-2 Positioning opening and closing angle 0°/115°
K207-3 Positioning opening and closing angle 0°/150°
Use matching cover to hide screws
Use flame retardant materials

Available services

Installation method: hidden screws

Product Name
Positioning Torque Hinge

More information

If you have more technical advice，Please call
0535-6217008-801
