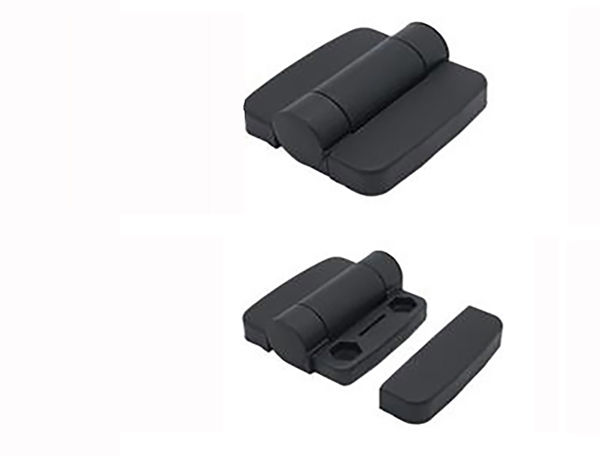

Nylon Hinge

K91

Nylon Hinge

Plastic Injection

application:Instrument case,Distributation cabinet, Door & windows

catalogue CAD data

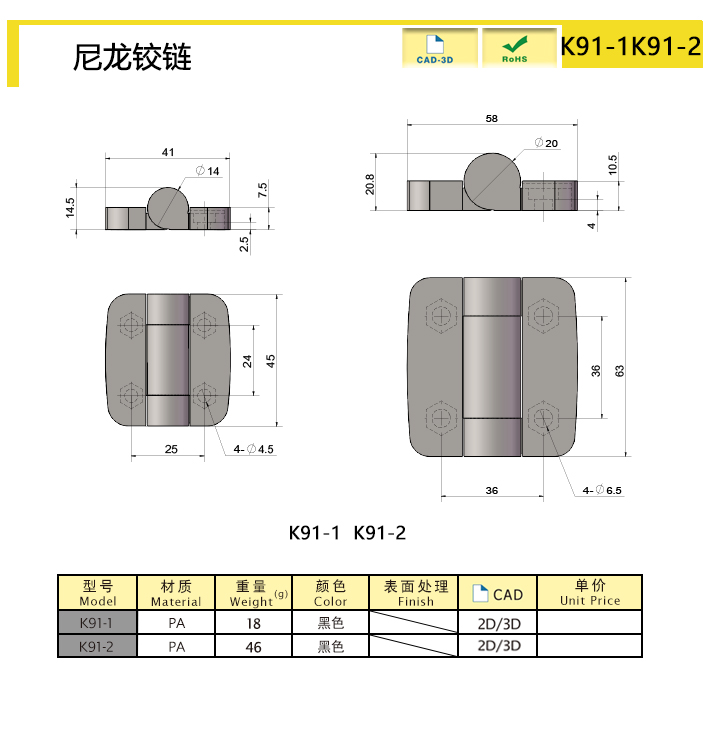

Product size diagram
Product size and properties
Model Number Material bottomLength(mm) bottomColor Weight (g) bottomFunction 3D DRAWINGS
K91-1 PA 45 Black 18 Mute
K91-2 PA 63 Black 46 Mute
characteristic
Light duty,grease-proof, maximum opening and closing angle 270°
Available services
Installation : Hidden screw
