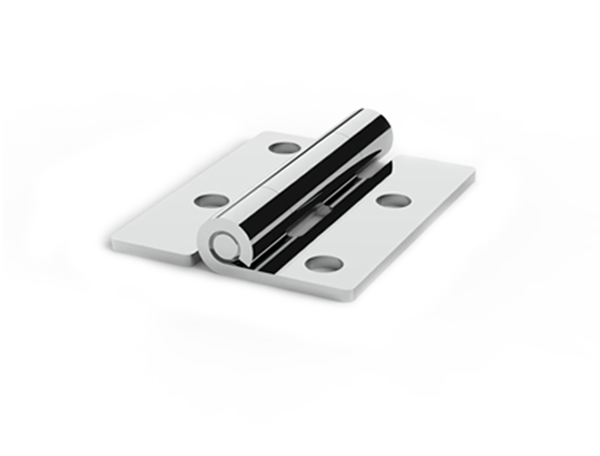

Torque Hinge

K211

Torque Hinge

SK7

application:Electrical cabinet, instrument cabinet, all kinds of automatic equipment

catalogue CAD data

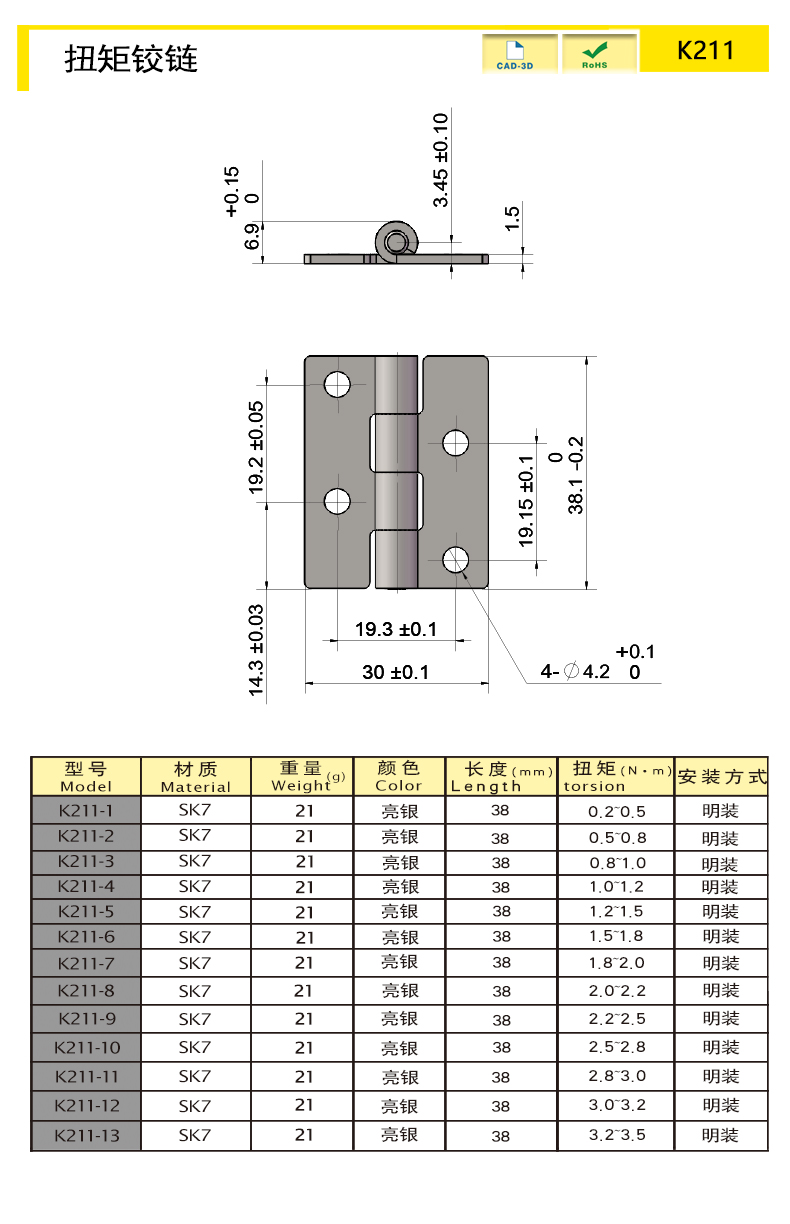

Product size diagram
Product size and properties
Model Number Material bottomLength(mm) bottomColor Weight (g) bottomFunction 3D DRAWINGS
K211-1 SPCC 38 Silver 21 Fixed torque
K211-2 SPCC 38 Silver 21 Fixed torque
K211-3 SPCC 38 Silver 21 Fixed torque
K211-4 SPCC 38 Silver 21 Fixed torque
K211-5 SPCC 38 Silver 21 Fixed torque
K211-6 SPCC 38 Silver 21 Fixed torque
K211-7 SPCC 38 Silver 21 Fixed torque
K211-8 SPCC 38 Silver 21 Fixed torque
K211-9 SPCC 38 Silver 21 Fixed torque
K211-10 SPCC 38 Silver 21 Fixed torque
K211-11 SPCC 38 Silver 21 Fixed torque
K211-12 SPCC 38 Silver 21 Fixed torque
K211-13 SPCC 38 Silver 21 Fixed torque
characteristic

Any stop, open and close range of any Angle can be positioned to stop.

It has passed 20,000 switch tests

Service life: opening and closing 5000 times, torque attenuation 15%

Available services
Installation: Exposed Mount
