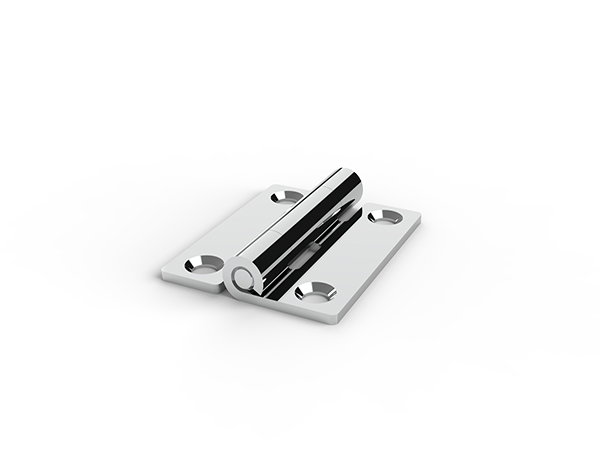

Torque Hinge

K212

Torque Hinge

SK7

application:Electrical cabinet, instrument cabinet, all kinds of automatic equipment

catalogue CAD data

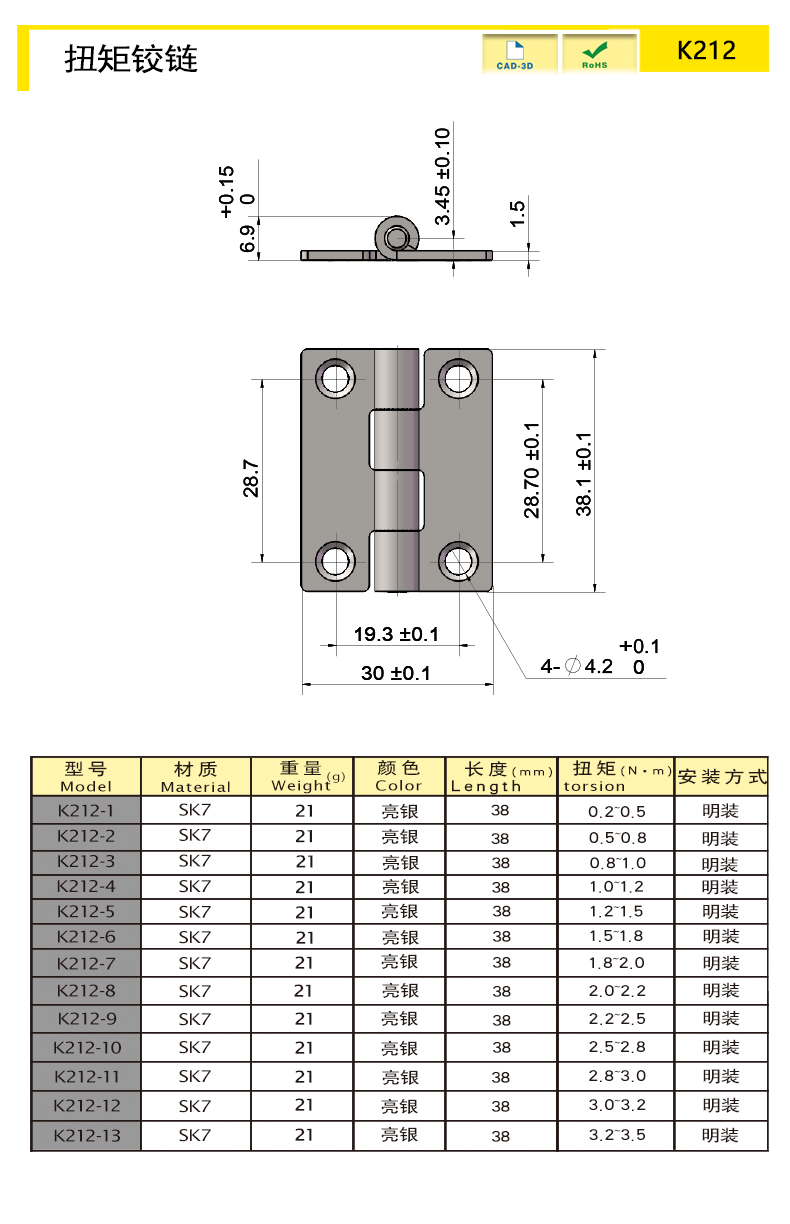

Product size diagram
Product size and properties
Model Number Material bottomLength(mm) bottomColor Weight (g) bottomFunction 3D DRAWINGS
K212-1 SPCC 38 Silver 21 Fixed torque
K212-2 SPCC 38 Silver 21 Fixed torque
K212-3 SPCC 38 Silver 21 Fixed torque
K212-4 SPCC 38 Silver 21 Fixed torque
K212-5 SPCC 38 Silver 21 Fixed torque
K212-6 SPCC 38 Silver 21 Fixed torque
K212-7 SPCC 38 Silver 21 Fixed torque
K212-8 SPCC 38 Silver 21 Fixed torque
K212-9 SPCC 38 Silver 21 Fixed torque
K212-10 SPCC 38 Silver 21 Fixed torque
K212-11 SPCC 38 Silver 21 Fixed torque
K212-12 SPCC 38 Silver 21 Fixed torque
K212-13 SPCC 38 Silver 21 Fixed torque
characteristic

Any stop, open and close range of any Angle can be positioned to stop.

It has passed 20,000 switch tests

Service life: opening and closing 5000 times, torque attenuation 15%

Available services
Installation: Exposed Mount
