Damping Hinge

K111

Damping Hinge

Aluminum alloy anodized

application：Electrical cabinet, instrument cabinet, all kinds of automatic equipment

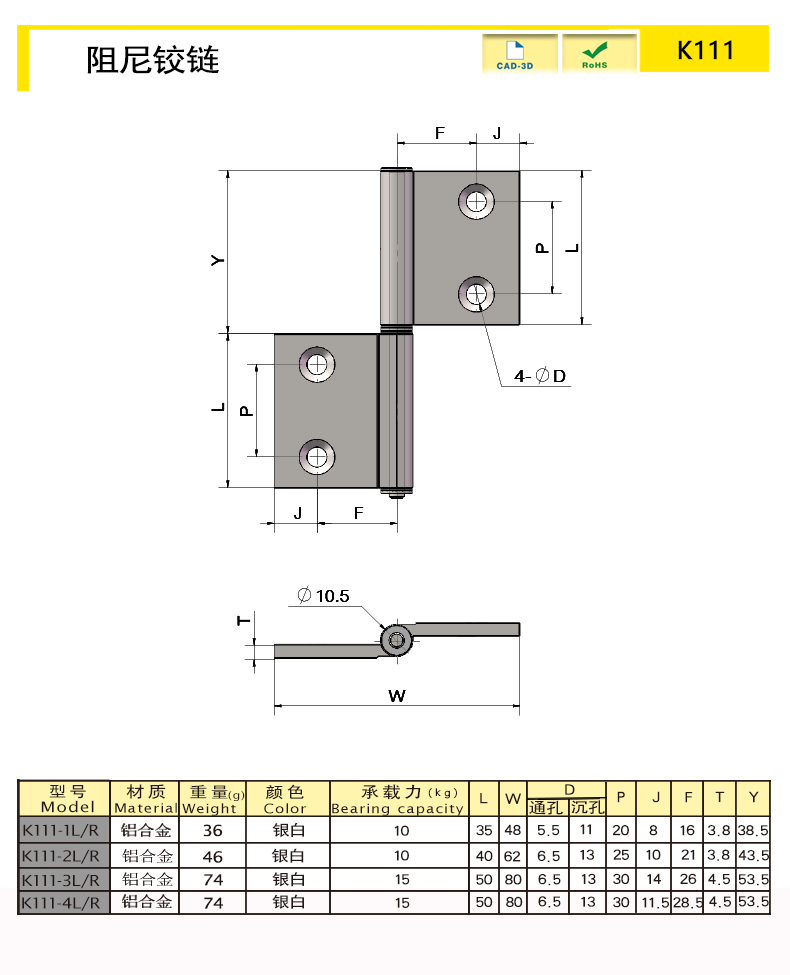

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K111-1L/R	Aluminum alloy	73.5	Silver	36	Light damping
K111-2L/R	Aluminum alloy	83.5	Silver	46	Light damping
K111-3L/R	Aluminum alloy	103.5	Silver	74	Light damping
K111-4L/R	Aluminum alloy	103.5	Silver	74	Light damping

characteristic

Quiet, light damping, lightweight, high strength

Can be installed on aluminum frame

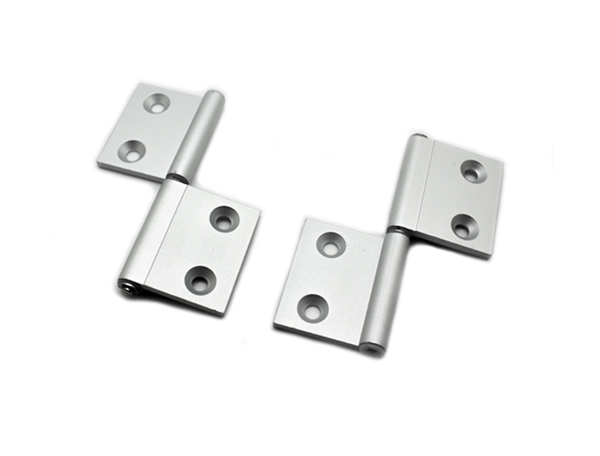

The product is divided into left use and right use (the picture shows the left side is pulled out)

Available services

Installation: Exposed Mount

Product Name
Damping Hinge
