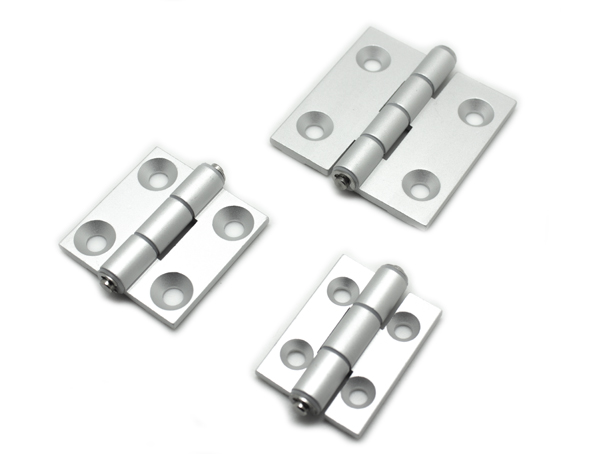

Damping Hinge

K114

Damping Hinge

Aluminum alloy anodized

application:Electrical cabinet, instrument cabinet, all kinds of automatic equipment

catalogue CAD data

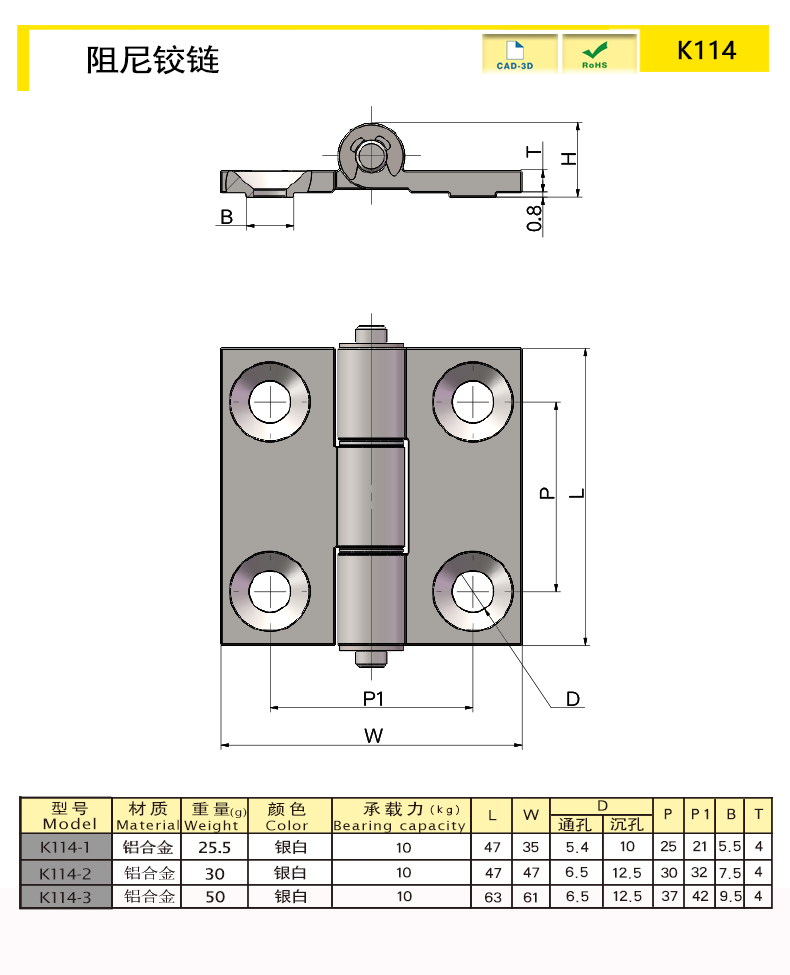

Product size diagram
Product size and properties
Model Number Material bottomLength(mm) bottomColor Weight (g) bottomFunction 3D DRAWINGS
K114-1 Aluminum alloy 47 Silver 25.5 Light damping
K114-2 Aluminum alloy 47 Silver 30 Light damping
K114-3 Aluminum alloy 63 Silver 50 Light damping
characteristic

Quiet, light damping, lightweight, high strength

With positioning convex plate can be quickly and accurately installed on the aluminum frame

Available services
Installation: Exposed Mount
