Torque Hinge

K216

Torque Hinge

Zinc Alloy Die Casting

application:Network cabinets, automation equipment

catalogue CAD data

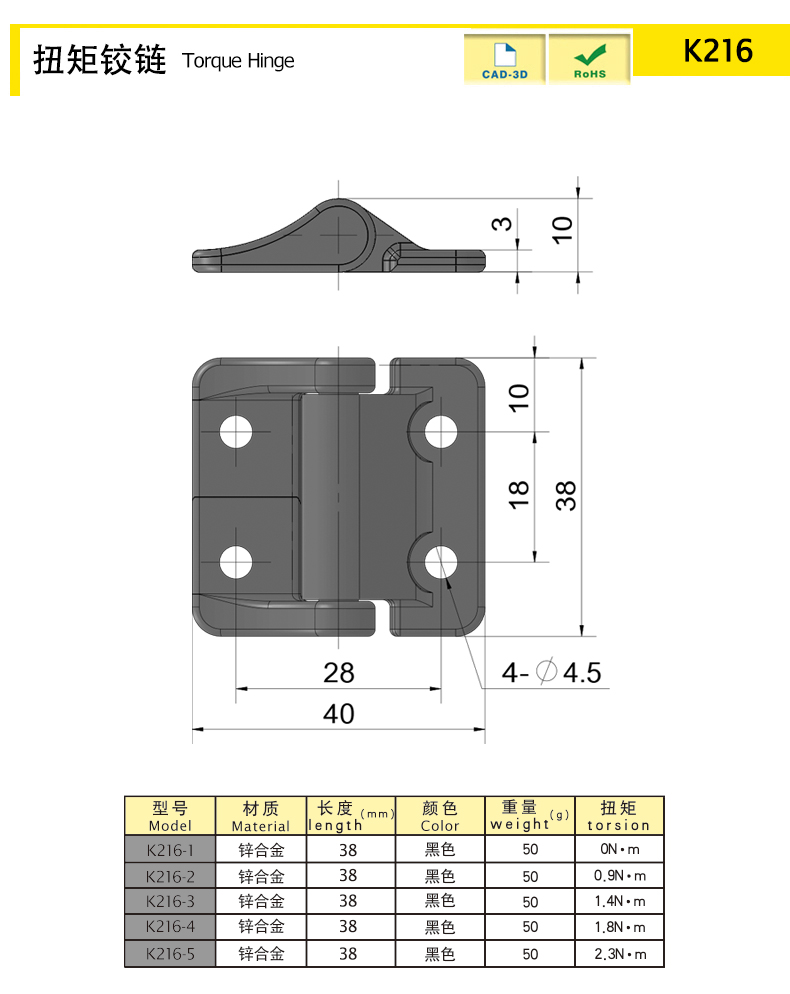

Product size diagram
Product size and properties
Model Number Material bottomLength(mm) bottomColor Weight (g) bottomFunction 3D DRAWINGS
K216-1 Zinc Alloy 38 Black 50 Fixed torque
K216-2 Zinc Alloy 38 Black 50 Fixed torque
K216-3 Zinc Alloy 38 Black 50 Fixed torque
K216-4 Zinc Alloy 38 Black 50 Fixed torque
K216-5 Zinc Alloy 38 Black 50 Fixed torque
characteristic
Any stop, positioning can be stopped at any angle within the opening and closing range
Available services
Installation : Exposed Mount
