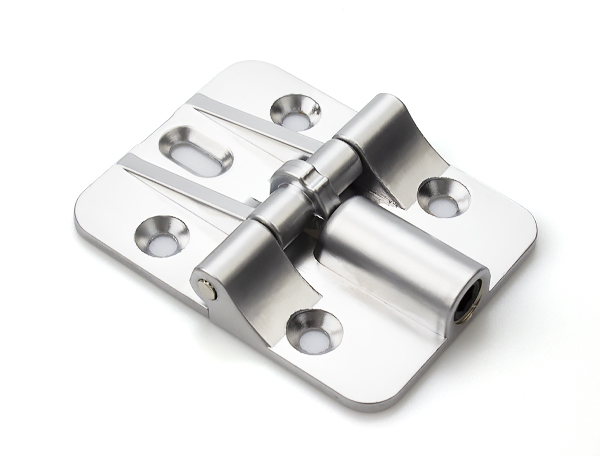

Positioning Hinge

K221

Positioning Hinge

Zinc Alloy Die Casting

application：Electrical cabinet, instrument cabinet, all kinds of automatic equipment

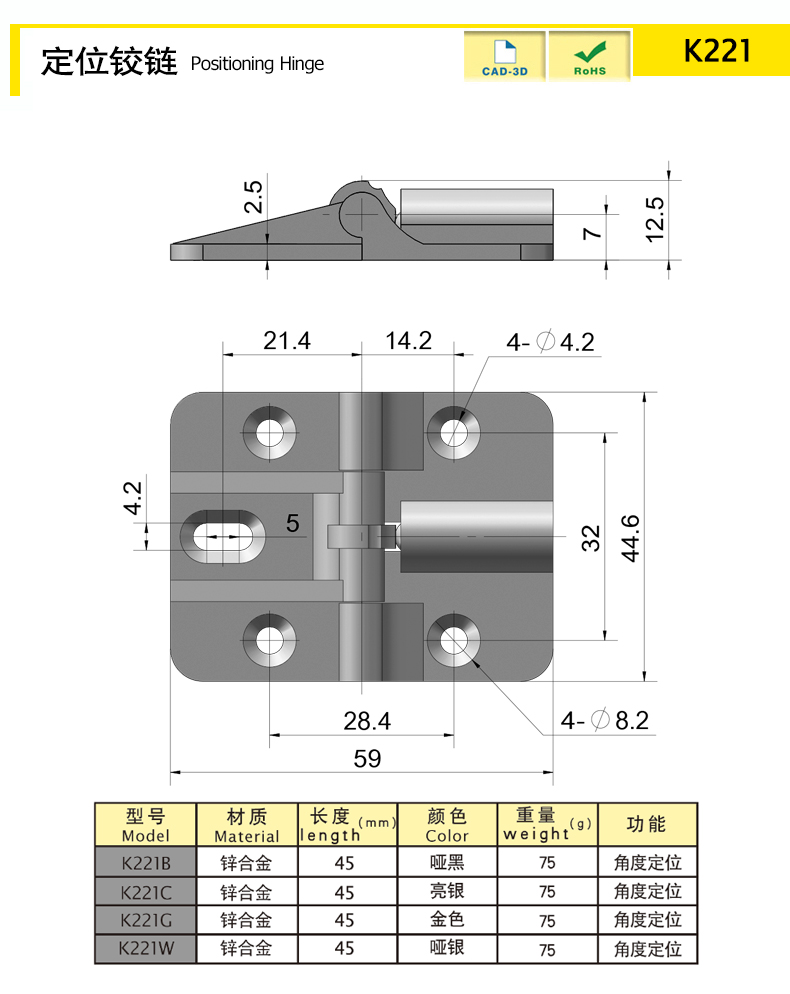

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K221B	Zinc Alloy	45	Black	75	Angle positioning
K221C	Zinc Alloy	45	Silver	75	Angle positioning
K221G	Zinc Alloy	45	Gold	75	Angle positioning
K221W	Zinc Alloy	45	Silver	75	Angle positioning

characteristic

Positioning opening and closing angle 0°/45°/90°/180°

Available services

Installation: Exposed Mount

Product Name
Positioning Hinge
