Torque Hinge

K223

Torque Hinge

Stainless Steel Polished

application：LCD monitors and surveillance cameras, etc.

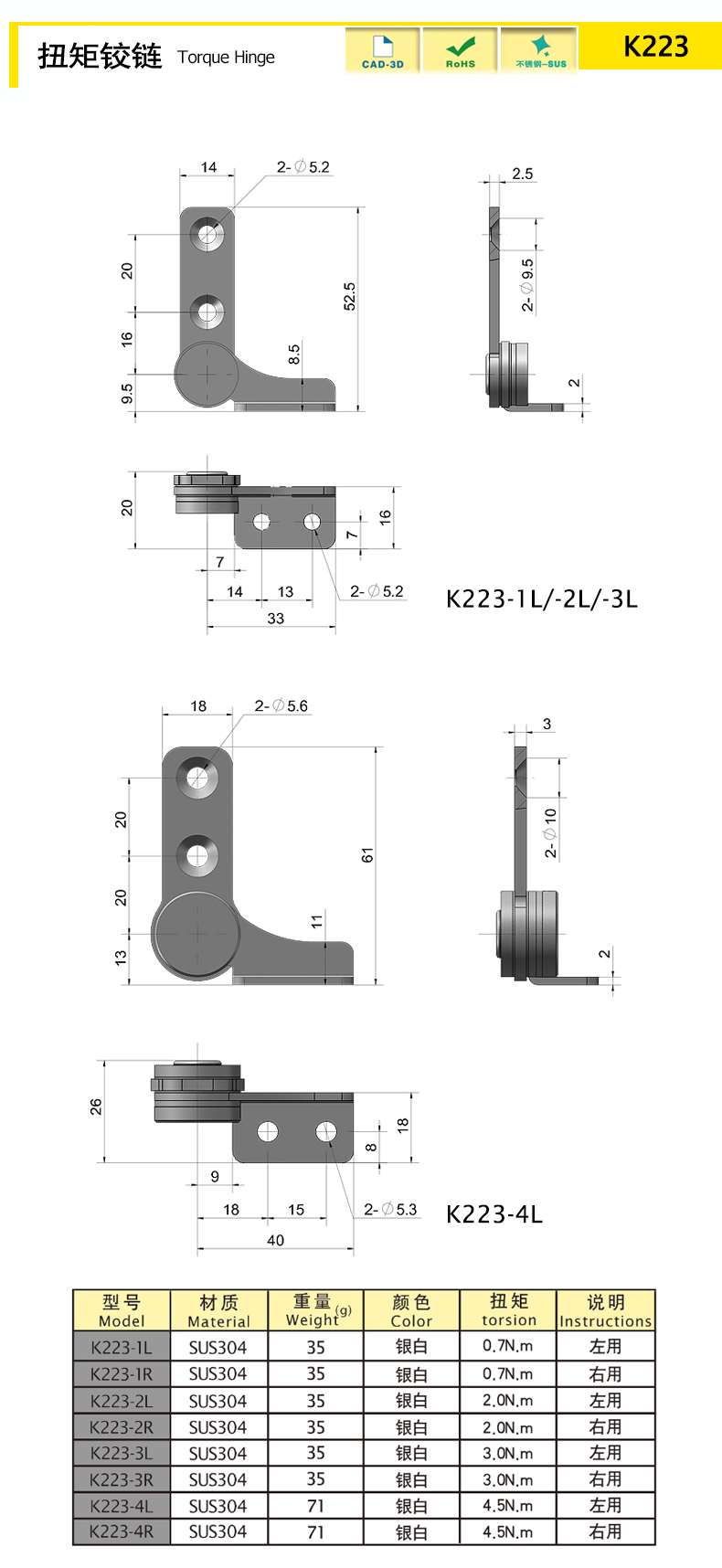

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K223-1L	SUS304	/	Silver	35	Fixed torque
K223-1R	SUS304	/	Silver	35	Fixed torque
K223-2L	SUS304	/	Silver	35	Fixed torque
K223-2R	SUS304	/	Silver	35	Fixed torque
K223-3L	SUS304	/	Silver	35	Fixed torque
K223-3R	SUS304	/	Silver	35	Fixed torque
K223-4L	SUS304	/	Silver	71	Fixed torque
K223-4R	SUS304	/	Silver	71	Fixed torque

characteristic

Any stop specification at any angle can be maintained, and the reciprocating torque within the movable range is constant.

Available services

Installation: Exposed Mount

Product Name
Torque Hinge
