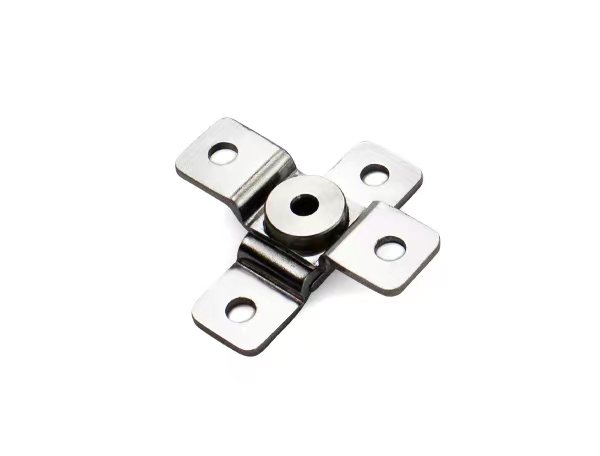

Torque Hinge

K230

Torque Hinge

Polish

application：LCD monitors and surveillance cameras, etc.

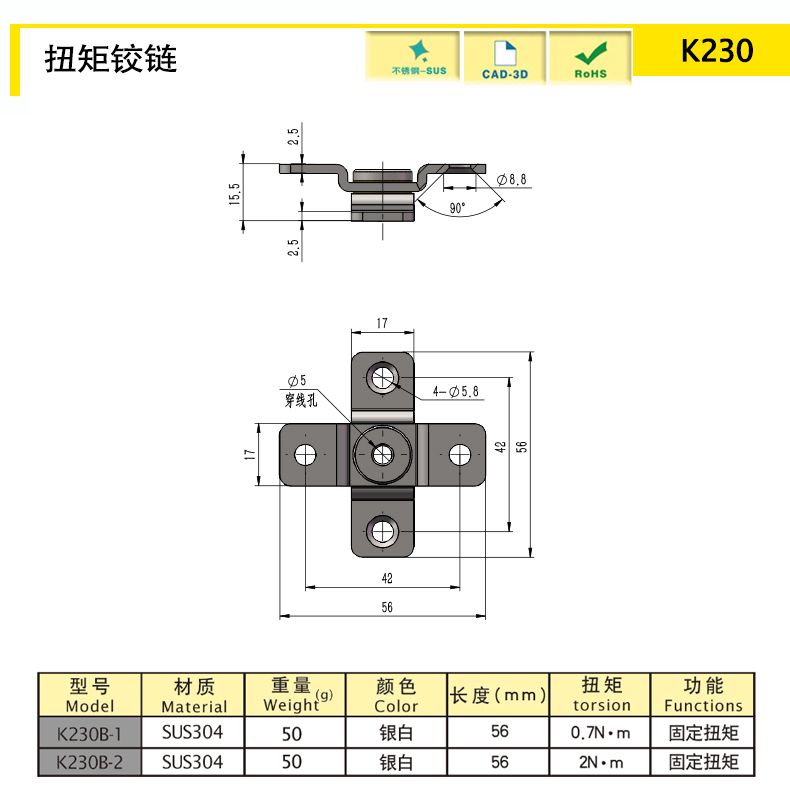

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function	3D DRAWINGS
K230B-1	SUS304	56	Silver	50	Fixed torque
K230B-2	SUS304	56	Silver	50	Fixed torque

characteristic

Any stop, any Angle within the range of opening and closing can be positioned to stop.

With threading hole, can rotate 360 degrees.

Available services

Product Name
Torque Hinge

More information

If you have more technical advice，Please call
0535-6217008-801
