Dual Axis Torque Hinge

K238B

Dual Axis Torque Hinge

Polished

application:LCD monitors and surveillance cameras, etc.

catalogue CAD data

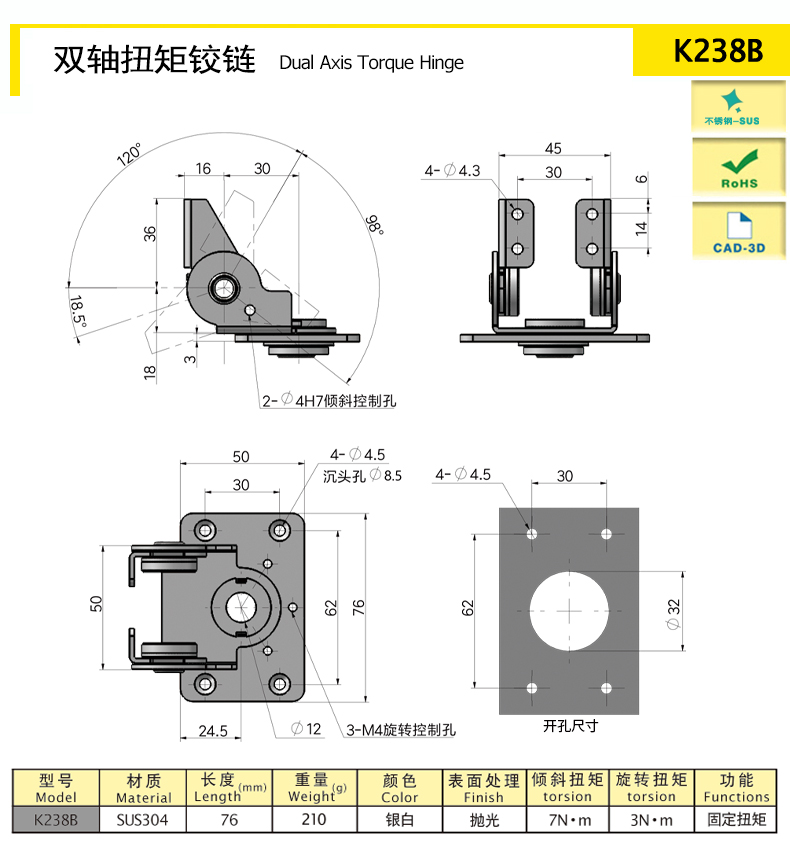

Product size diagram
Product size and properties
Model Number Material bottomLength(mm) bottomColor Weight (g) bottomFunction 3D DRAWINGS
K238B SUS304 70 Silver 210 Fixed torque
characteristic
The dual-axis torque mechanism can maintain any angle in the tilt direction and the rotation direction.
Rotation direction rotation angle 360 °

Constant reciprocating torque in the opening and closing range.

Opening and closing angle after control:

Tilt direction:0 ° ~ 120°

Direction of rotation:±30 °, ± 90 °
