Concealed Torque Hinge

K228B

Polished

application：Electrical cabinets, instrument cabinets, and various automatic equipment

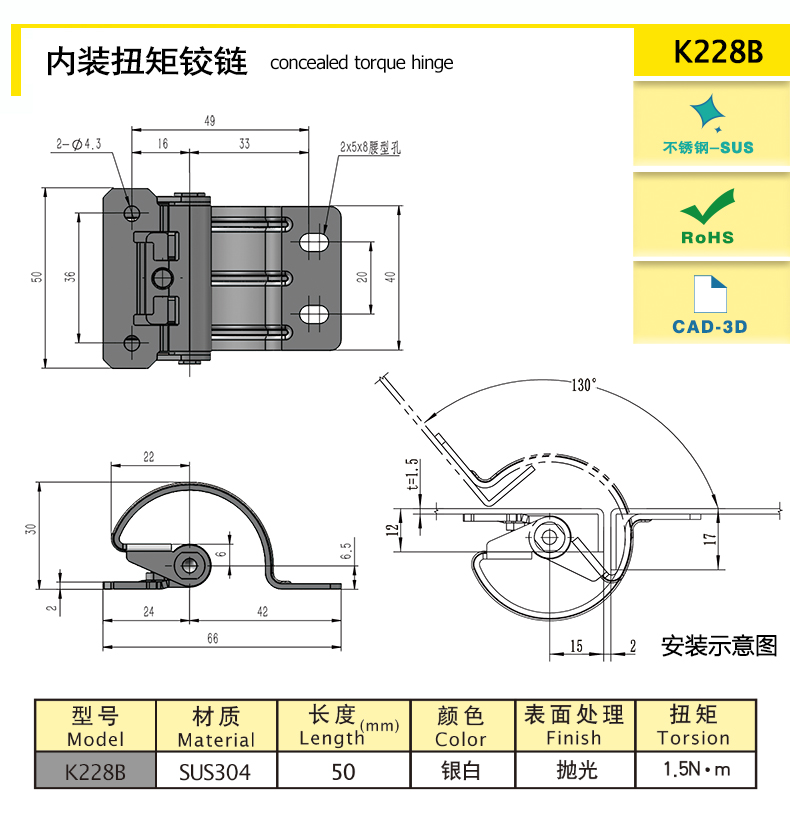

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function	3D DRAWINGS
K228B	SUS304	50	Silver	/	Fixed torque

characteristic

Hidden and invisible from the outside.

Any stop, open and close range of any Angle can be positioned to stop.

It has passed 20,000 switch tests.

Can be installed on aluminum frame.
