Zinc Alloy Hinge

K143

Zinc Alloy Hinge

Spray Coating

application：Mechanical equipment, medical equipment, control cabinets, etc

catalogue CAD data

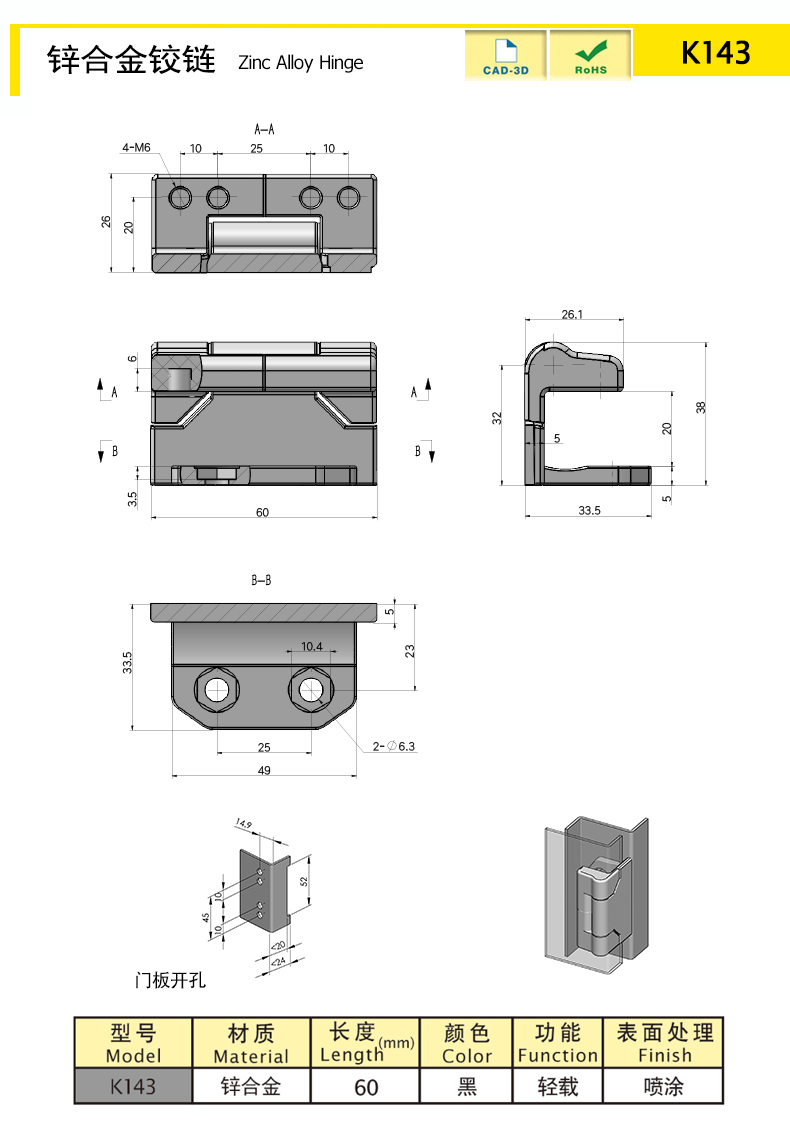

Product size diagram
Product size and properties
Model Number Material bottomLength（mm） bottomColor Weight (g) bottomFunction 3D DRAWINGS
K143 Zinc Alloy 60 Black / Light load
characteristic
Material: Zinc alloy hinge, copper gasket, carbon steel pin shaft
Maximum opening and closing angle: 180 °
Maximum static load
Radial load: 980N
Axial load: 630N
