Heavy Duty Detachable Hinge

K147

Heavy Duty Detachable Hinge

Zinc plated/Polished

application:Distribution box, Rittal cabinet, central cabinet, energy storage cabinet, etc

catalogue CAD data

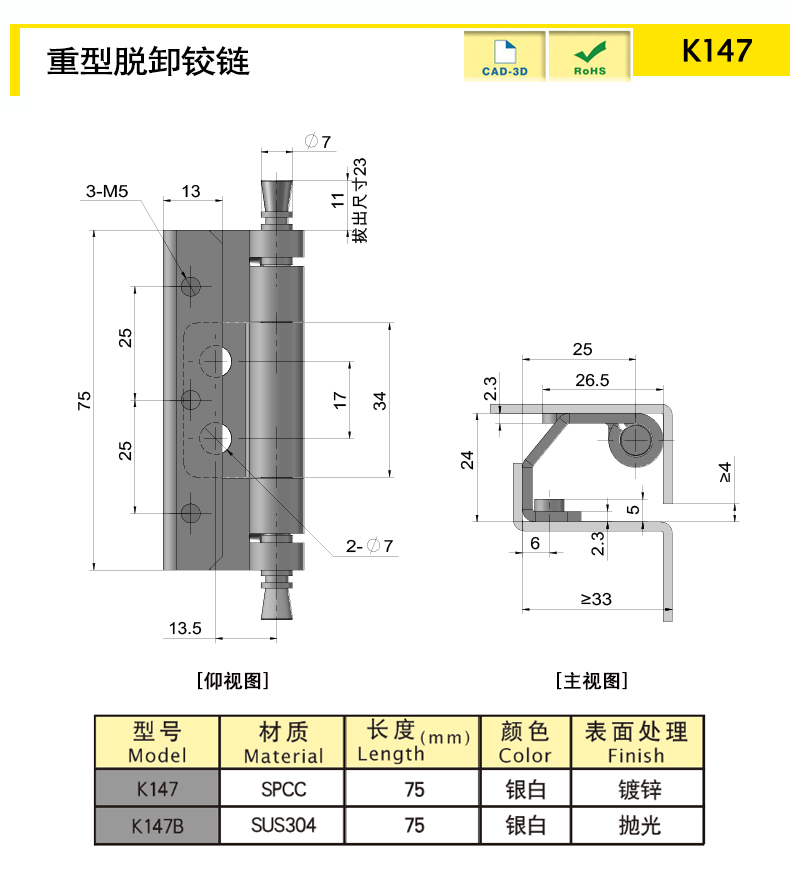

Product size diagram
Product size and properties
Model Number Material bottomLength(mm) bottomColor Weight (g) bottomFunction 3D DRAWINGS
K147 SPCC 75 Silver / Hidden;Detachable;Overload
K147B SUS304 75 Silver / Hidden;Detachable;Overload
characteristic
Suitable for 16 fold Rittal cabinets
Detachable and easy to install; Built in installation, hidden externally
