Zinc Alloy Hinge

K20

Zinc Alloy Hinge

Zinc Alloy Die Casting

application：Refrigeratory，Freezer,Oven,Equipment case

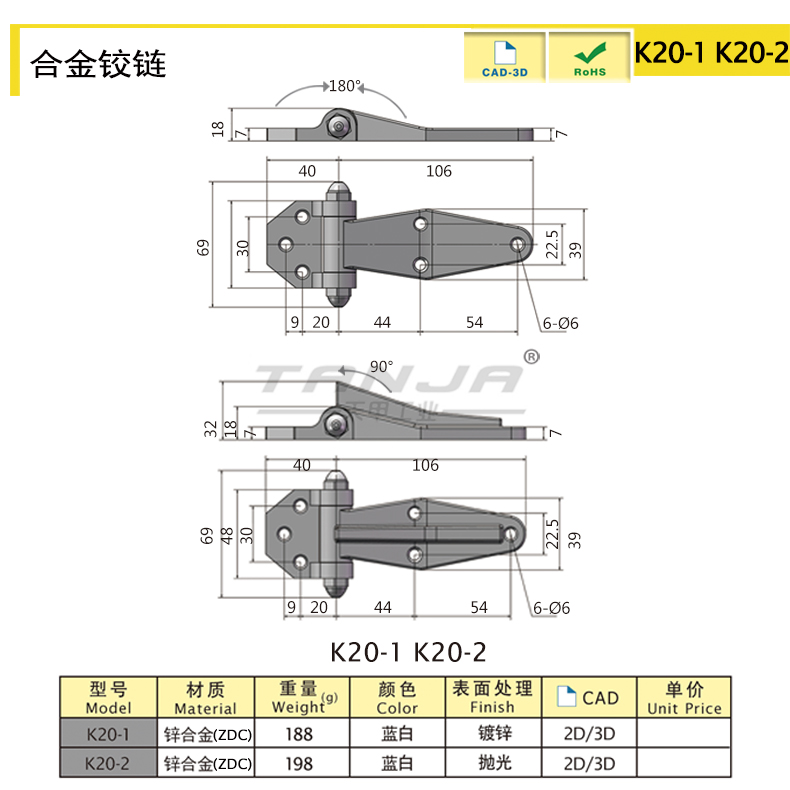

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function	3D DRAWINGS
K20-1	Zinc Alloy	146.9	Silver	188	Overload
K20-2	Zinc Alloy	146.9	Silver	198	Overload

characteristic

Stiffener is optional ,angle of rotation is 270°

Available services

Installation : Exposed Mount

Similar product recommendation

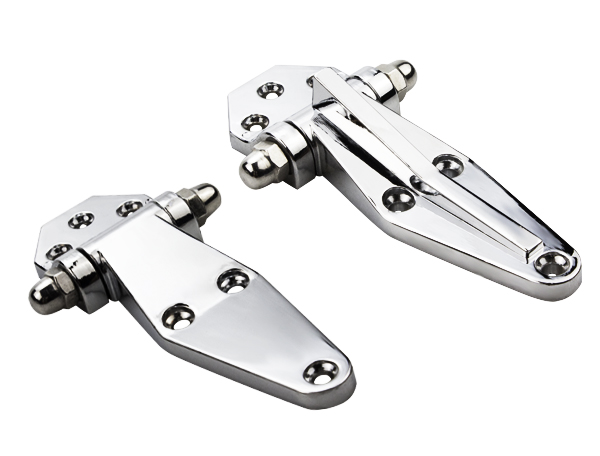

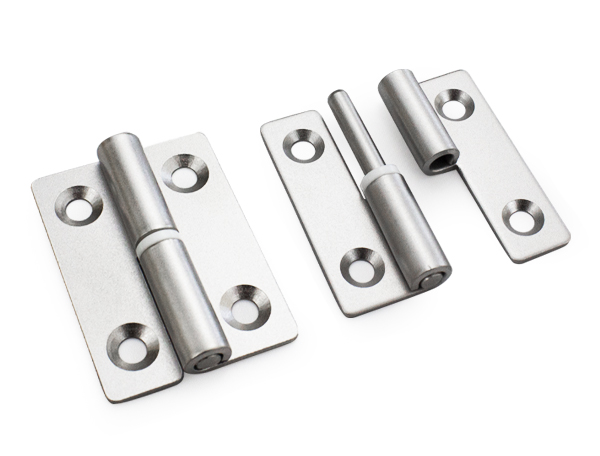

Detachable Hinge
