Butt Hinge

K69

Butt Hinge

Sheet stamping

application:Ships,Vehicles,Communication or measuring equipment

catalogue CAD data

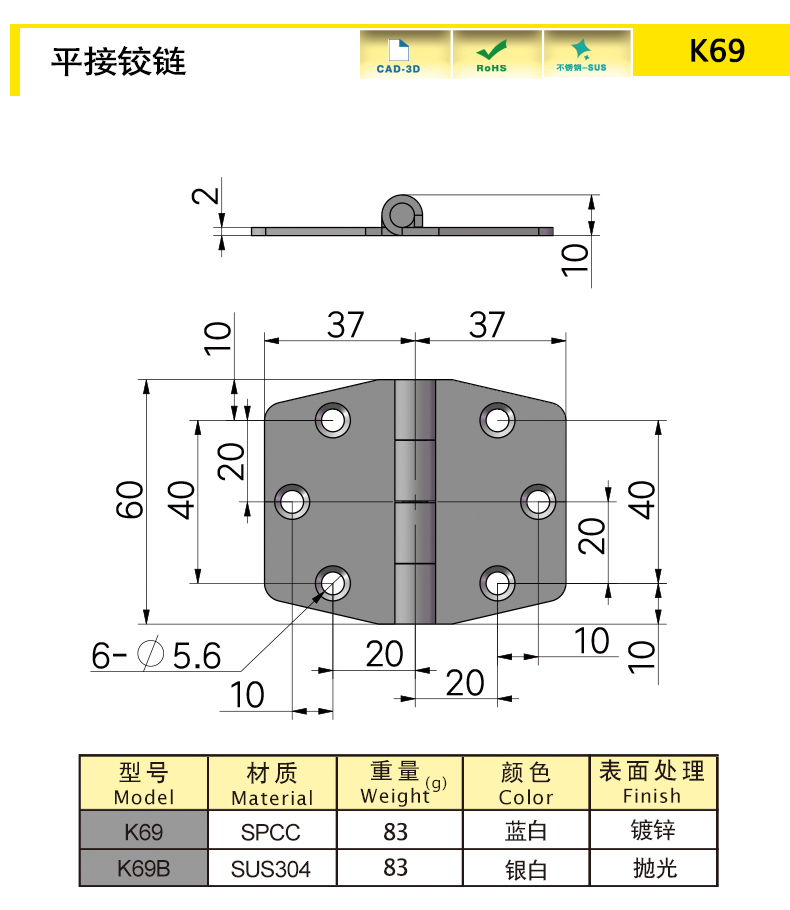

Product size diagram
Product size and properties
Model Number Material bottomLength(mm) bottomColor Weight (g) bottomFunction 3D DRAWINGS
K69B SUS304 74 Silver 83 Light load
K69 SPCC 74 Blue-white 83 Light load
characteristic

6 mounting holes increase the robustness,angle of rotation is 270 °

Available services

Installation : Exposed Mount

Must choose
Please select the required product catalogue
Interested product
Company name example)Yantai Tanja Precision Machinery Co Ltd
Name of department example)Development Department
Name
Address
Telephone example)0535-621-7008
Fax example)0535-2277515-803
Email

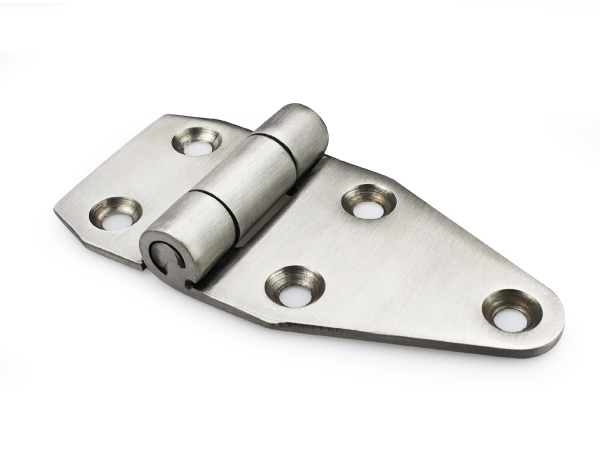

Similar product recommendation
