Storage Type Paddle Pull Handle

M70

Storage Type Paddle Pull Handle

Die casting zinc

application:Emergency doors, cabinets, testing equipment, medical equipment

catalogue CAD data

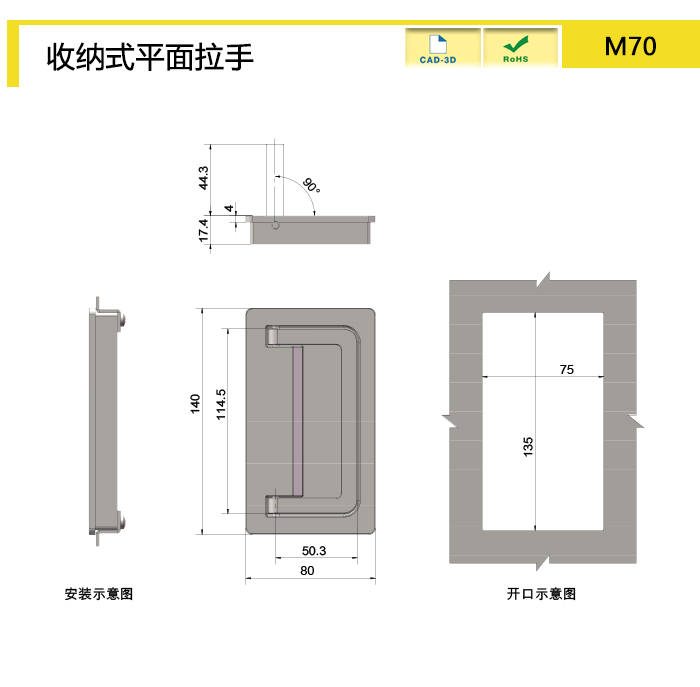

Product size diagram
Product size and properties
Model Number Color Length(mm) bottomWeight (g) bottomMaterial Function 3D DRAWINGS
M70 Silver 140 615 Zinc Alloy Paddle Pull Handle
characteristic

Pit mounted,don’t occupy space

With recovery spring.

Surface treatment: chrome plated

Available services
Installation:   Exposed Mount
