Magnetic Rebounder

MC11

Magnetic Rebounder

application：Cabinet Doors, Windproof Doors, Mechanical Equipment

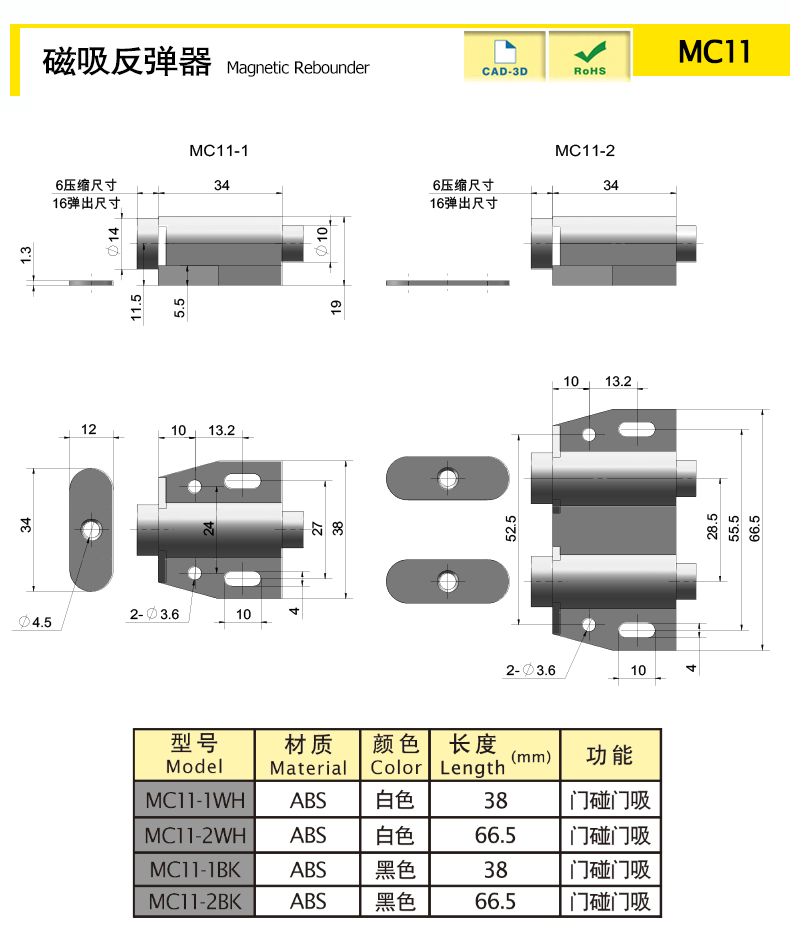

Product size diagram

Product size and properties

Model Number	Color	Length（mm）	Weight (g)	Material	Function
MC11-1WH	White	38	/	ABS	Grabber Catch Latches
MC11-2WH	White	66.5	/	ABS	Grabber Catch Latches
MC11-1BK	Black	38	/	ABS	Grabber Catch Latches
MC11-2BK	Black	66.5	/	ABS	Grabber Catch Latches

characteristic

Using a whole piece of high-quality ferrite magnet, the magnetic force is stable and durable.

Pull free rebound device, one press to open.
