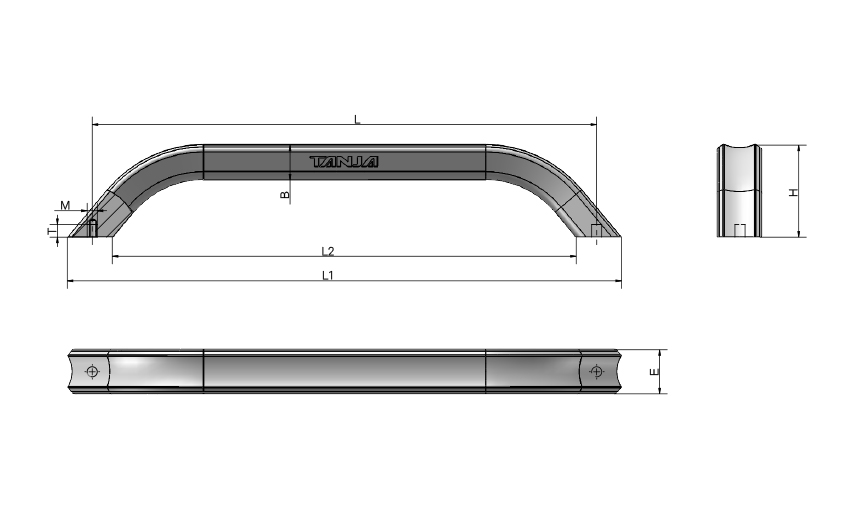

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L49-35-400-B | 73 | 368 | 440 | / | 400 | / | Aluminum Alloy | / | 35 | / | 10 | M8 | / | / | / | / | 28 | / | / |
 |
| L49-35-400-W | 73 | 368 | 440 | / | 400 | / | Aluminum Alloy | / | 35 | / | 10 | M8 | / | / | / | / | 28 | / | / |
|
| L49-35-600-B | 73 | 568 | 640 | / | 600 | / | Aluminum Alloy | / | 35 | / | 10 | M8 | / | / | / | / | 28 | / | / |
|
| L49-35-600-W | 73 | 568 | 640 | / | 600 | / | Aluminum Alloy | / | 35 | / | 10 | M8 | / | / | / | / | 28 | / | / |
|
characteristic

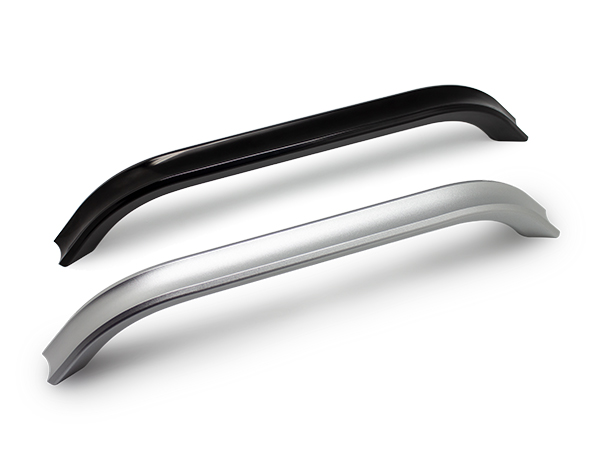

Bent handle:
Type W: anodized, silver white, matte finish (sandblasting)
Type B: anodized, black, bright finish (polished)
Installation: blind hole with thread
Unique oval handle shape, stylish and beautiful, comfortable to hold, firm and stable
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name
Handle
Handle
More information
If you have more technical advice，Please call0535-6217008-801
