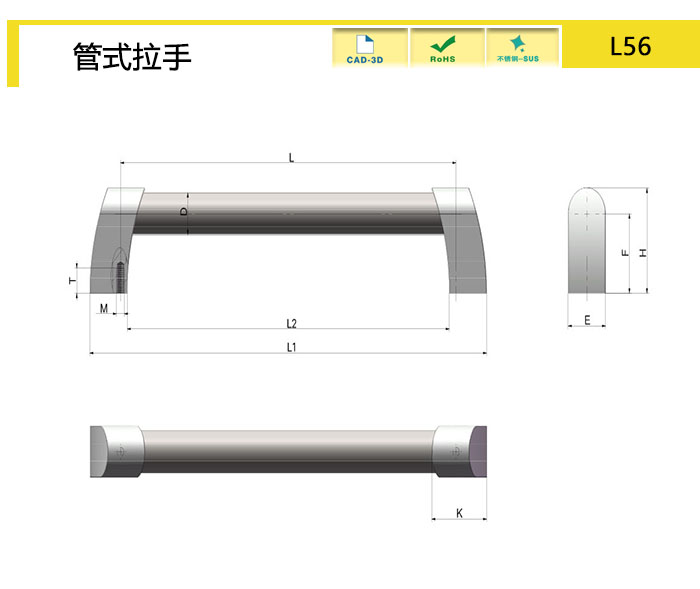

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L56-D32-350 | 80 | 336 | 414 | 32 | 350 | 1.2 | SUS304 | 60.5 | 39 | / | 15 | M8 | / | / | 57 | / | / | / | / |
 |
| L56-D32-400 | 80 | 386 | 464 | 32 | 400 | 1.3 | SUS304 | 60.5 | 39 | / | 15 | M8 | / | / | 57 | / | / | / | / | |
| L56-D32-500 | 80 | 486 | 564 | 32 | 500 | 1.4 | SUS304 | 60.5 | 39 | / | 15 | M8 | / | / | 57 | / | / | / | / |
|
| L56-D32-600 | 80 | 586 | 664 | 32 | 600 | 1.6 | SUS304 | 60.5 | 39 | / | 15 | M8 | / | / | 57 | / | / | / | / | |
| L56-D32-800 | 80 | 786 | 864 | 32 | 800 | 1.9 | SUS304 | 60.5 | 39 | / | 15 | M8 | / | / | 57 | / | / | / | / |
characteristic
Tubular handle
Foot: zinc alloy ，tube body:SUS304
Installation: pin with threaded blind hole
Available services
1. Non-standard, Length can be customized; 2. Ultrasonic cleaning and dust-free packaging 3.Laser cutting Logo
Product Name

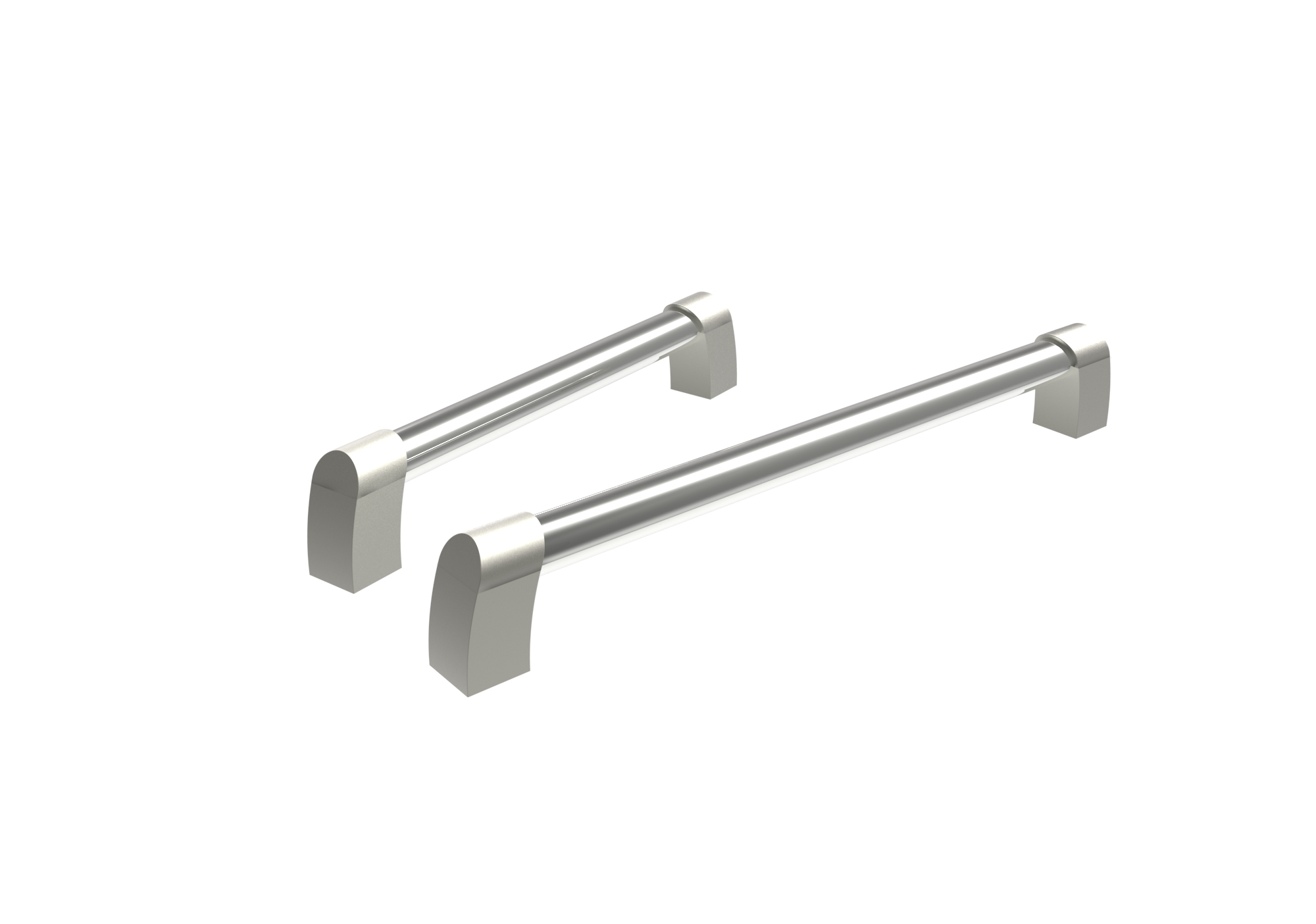

Tubular Handle
Tubular Handle
More information
If you have more technical advice，Please call0535-6217008-801
