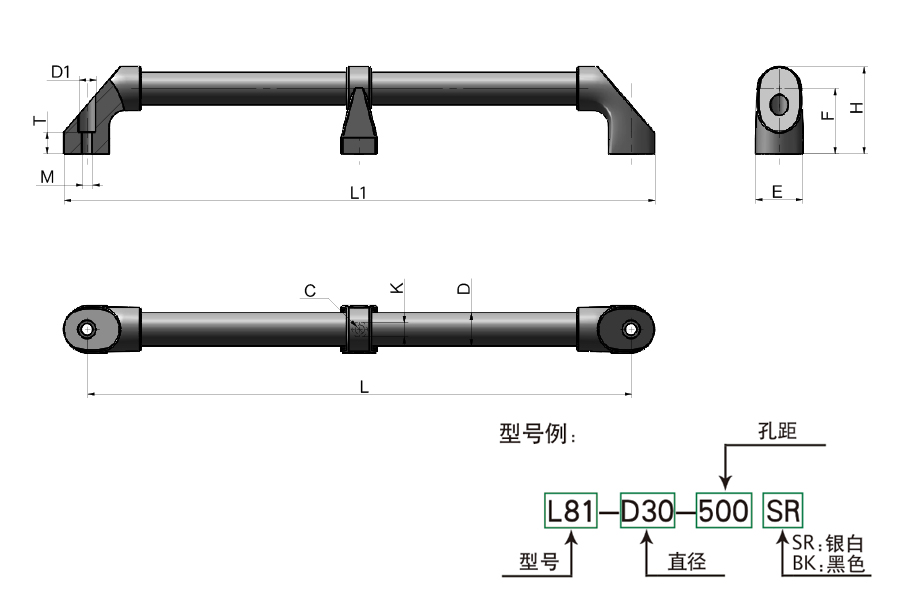

Product size diagram
Product size and properties
| Model Number | H  | L2 | L1 | Handle Diameter D | Length L | Weight（kg） | Material | F | E | D1 | T | M | L3 | C | K | A | B | Tmin | R |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L81-D30-500SR | 80 | / | 543 | 30 | 500 | / | Aluminum Alloy | / | / | 16.5 | 20 | 10.3 | / | / | 13 | / | / | / | / |
 |
| L81-D30-500BK | 80 | / | 543 | 30 | 500 | / | Aluminum Alloy | / | / | 16.5 | 20 | 10.3 | / | / | 13 | / | / | / | / | |
| L81-D30-600SR | 80 | / | 640 | 30 | 600 | / | Aluminum Alloy | / | / | 16.5 | 20 | 10.3 | / | / | 13 | / | / | / | / | |
| L81-D30-600BK | 80 | / | 640 | 30 | 600 | / | Aluminum Alloy | / | / | 16.5 | 20 | 10.3 | / | / | 13 | / | / | / | / | |
| L81-D30-800SR | 80 | / | 843 | 30 | 800 | / | Aluminum Alloy | / | / | 16.5 | 20 | 10.3 | / | / | 13 | / | / | / | / | |
| L81-D30-800BK | 80 | / | 843 | 30 | 800 | / | Aluminum Alloy | / | / | 16.5 | 20 | 10.3 | / | / | 13 | / | / | / | / | |
| L81-D30-1000SR | 80 | / | 1043 | 30 | 1000 | / | Aluminum Alloy | / | / | 16.5 | 20 | 10.3 | / | / | 13 | / | / | / | / | |
| L81-D30-1000BK | 80 | / | 1043 | 30 | 1000 | / | Aluminum Alloy | / | / | 16.5 | 20 | 10.3 | / | / | 13 | / | / | / | / |
characteristic
Tubular handle
Foot: glass fiber reinforced polyamide (PA)
SR type:Aluminum alloy, anodized, silver white, matte finish; Foot, black, matte finish
BK type:Aluminum alloy, anodized, black, matte finish; Foot, black, matte finish
Available services
Product Name
Tubular Handle
Tubular Handle
More information
If you have more technical advice，Please call0535-6217008-801
